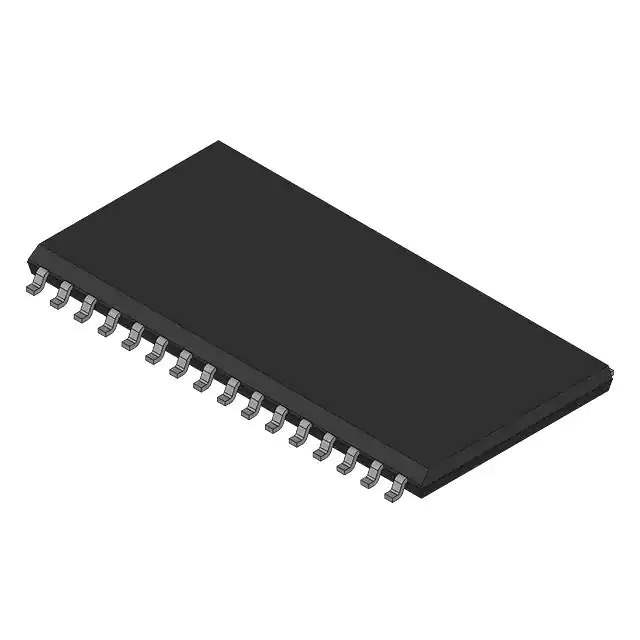

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Memory - Memory
Mfr Intel
Series M28F020
Package Bulk
Product Status Obsolete
Programmable Not Verified
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH
Memory Size 2Mbit
Memory Organization 256K x 8
Memory Interface Parallel
Write Cycle Time - Word, Page 150ns
Access Time 150 ns
Voltage - Supply 4.5V ~ 5.5V
Temperature Range - Operating 0°C ~ 70°C (TA)
Mounting Type Surface Mount
Package / Case 32-CFlatPack
Supplier Device Package 32-CFlatpack
Standard Package 56 pcs
MSL Level 3 (168 Hours)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8542.32.0071
Win Source Part Number 918837-F28F020150
Ultra Librarian 3D Model Ultra Librarian F28F020150 CAD Model

Description

The Intel M28F020 is a 2Mbit non-volatile memory integrated circuit (IC) designed for various memory applications.

  • Memory Size: 2Mbit
  • Technology: FLASH
  • Access Time: 150ns
  • Voltage Supply: 4.5V to 5.5V
  • Mounting: Surface Mountable
  • Package: 32-CFlatPack
  • Memory Interface: Parallel
  • Temperature Range: 0°C to 70°C
  • Product Status: Obsolete
