EPM9560RC208-15
Same model may have multiple batches, images only for reference.

EPM9560RC208-15

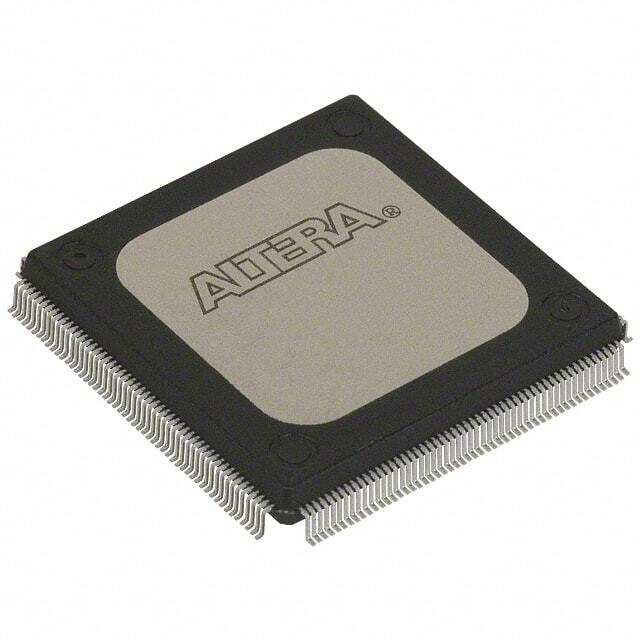

Part No EPM9560RC208-15
Manufacturer Intel
Catalog Embedded - CPLDs (Complex Programmable Logic Devices)
Description IC CPLD 560MC 15NS 208RQFP
Datasheet
EPM9560RC208-15 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - CPLDs (Complex Programmable Logic Devices)
Mfr Intel
Series MAX® 9000
Package Tray
Product Status Obsolete
Programmable Not Verified
Programmable Type In System Programmable
Delay Time tpd(1) Max 15 ns
Voltage Supply - Internal 4.75V ~ 5.25V
Number of Logic Elements/Blocks 35
Number of Macrocells 560
Number of Gates 12000
Number of I/O 153
Temperature Range - Operating 0°C ~ 70°C (TA)
Mounting Type Surface Mount
Package / Case 208-BFQFP Exposed Pad
Supplier Device Package 208-RQFP (28x28)
Base Product Number EPM9560
Standard Package 48 pcs
Moisture Sensitivity Level (MSL) 3 (168 Hours)
ECCN 3A001A2A
HTSUS 8542.39.0001
Win Source Part Number 918489-EPM9560RC208-15
Ultra Librarian 3D Model Ultra Librarian EPM9560RC208-15 CAD Model

Description

The 918489-EPM9560RC208-15 is an embedded complex programmable logic device (CPLD) from the MAX 9000 series.

  • Series: MAX 9000
  • Package: Tray
  • Standard Package Quantity: 48 pieces
  • Programmable: In-System
  • Gates: 12000
  • Delay Time: 15ns
  • Logic Elements/Blocks: 35
  • Macrocells: 560
  • Voltage Supply Range: 4.75V to 5.25V
  • Mounting Type: Surface Mountable
  • Package: 208-BFQFP exposed pad
  • Manufacturer: Intel
  • Part Status: Obsolete
