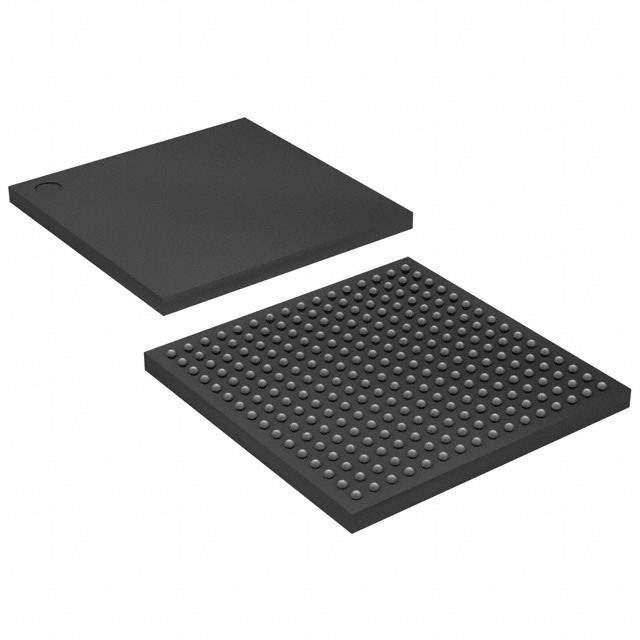

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded>CPLDs (Complex Programmable Logic Devices)
Manufacturer Intel
Packaging Tray
Programmable Type In System Programmable
Delay Time tpd(1) Max 5.4 ns
Voltage Supply - Internal 1.71V ~ 1.89V
Number of Logic Elements/Blocks 570
Number of Macrocells 440
Number of I/O 160
Temperature Range - Operating 0°C ~ 85°C (TJ)
Mounting Surface Mount
Case / Package 256-BGA
Supplier Device Package 256-FBGA (17x17)
Base Product Number EPM570
RoHS Status RoHS non-compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991D
HTSUS 8542.39.0001
Other Part Number 544-1304,973390,-544-1304
Standard Package 90
Win Source Part Number 1321862-EPM570GF256C4
Ultra Librarian 3D Model Ultra Librarian EPM570GF256C4 CAD Model

Description

This electronic component is an embedded-CPLD manufactured by Intel.

  • Win Source Part Number: 1321862-EPM570GF256C4
  • Package Category: Tray
  • Standard Package: 90 units
  • Mounting Type: Surface Mount
  • Number of I/O: 160
  • Programmable Type: In-system programmable
  • Delay Time tpd(1) max: 5.4ns
  • Internal Voltage Supply: 1.71V to 1.89V
  • Number of Logic Elements/Blocks: 570
  • Number of Macrocells: 440
  • Supplier Device Package: 256-FBGA (17x17)
  • Operating Temperature Range: 0°C to 85°C (TJ)
  • Case/Package: 256-BGA
  • ECCN: 3A991D
  • REACH Status: REACH unaffected
  • HTSUS: 8542.39.0001
  • Other Part Numbers: 544-1304, 973390, and -544-1304
  • Base Product Number: EPM570
  • RoHS Status: Non-compliant
