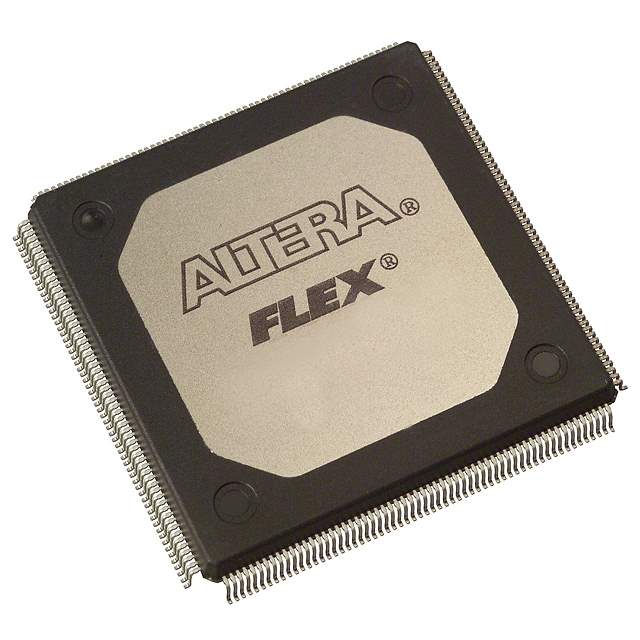

EPM9560ARC240-10 Real Image
Same model may have multiple batches, images only for reference.

EPM9560ARC240-10

Part No EPM9560ARC240-10
Manufacturer Altera
Catalog Embedded - CPLDs (Complex Programmable Logic Devices)
Description IC CPLD 560MC 10NS 240RQFP / CPLD MAX® 9000 Family 12K Gates 560 Macro Cells 144.9MHz 5V 240-Pin RQFP Tray
Datasheet
EPM9560ARC240-10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Altera
Series MAX 9000A
Packaging Tray
Part Status Obsolete(EOL)
Programmable Type In System Programmable
Delay Time tpd(1) Max 10.0ns
Voltage Supply - Internal 4.75 V ~ 5.25 V
Number of Logic Elements/Blocks 35
Number of Macrocells 560
Number of Gates 12000
Number of I/O 191
Operating Temperature Range 0°C ~ 70°C (TA)
Mounting SMD
Package 240-BFQFP Exposed Pad
Manufacturer Package 240-RQFP (32x32)
Win Source Part Number 774227-EPM9560ARC240-10
Popularity Medium
Supply and Demand Status Limited
Family Name EPM9560A
ECCN 3A991
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian EPM9560ARC240-10 CAD Model

Description

The Altera EPM9560ARC240-10 is an in-system programmable integrated circuit with 12000 gates and 191 I/Os.

  • Gates: 12000
  • I/Os: 191
  • Logic Elements/Blocks: 35
  • Macrocells: 560
  • Package: 240-BFQFP Exposed Pad
  • Voltage Supply Range: 4.75V to 5.25V
  • Maximum Delay Time: 10.0ns
  • Category: Integrated Circuits
