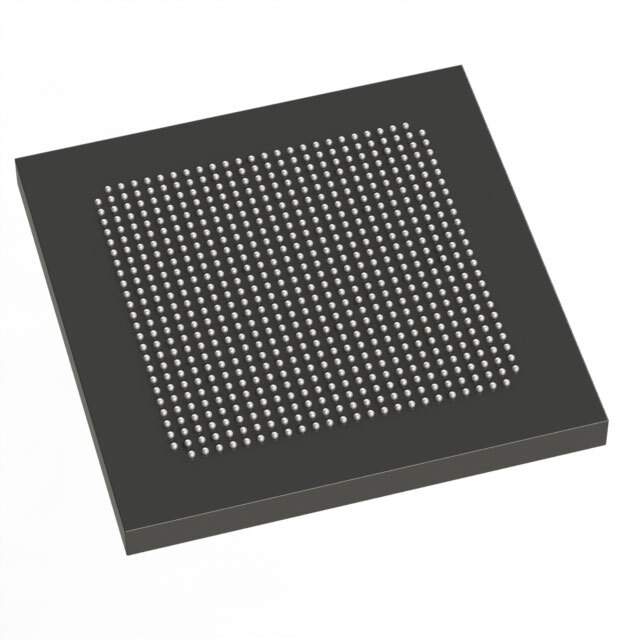

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - FPGAs (Field Programmable Gate Array)
Mfr Intel
Series Stratix® III E
Package Tray
Product Status Obsolete
Number of LABs/CLBs 10200
Number of Logic Elements/Cells 255000
Total RAM Bits 16672768
Number of I/O 488
Voltage - Supply 0.86V ~ 1.15V
Mounting SMD (SMT)
Temperature Range - Operating 0°C ~ 85°C (TJ)
Package / Case 780-BBGA, FCBGA
Supplier Device Package 780-HBGA (33x33)
Base Product Number EP3SE260
MSL Level 3 (168 Hours)
ECCN 3A001A2C
HTSUS 8542.39.0001
Other Names 971108
Standard Package 24
Win Source Part Number 1231602-EP3SE260H780C2N
Ultra Librarian 3D Model Ultra Librarian EP3SE260H780C2N CAD Model

Description

The EP3SE260H780C2N is a field programmable gate array (FPGA) from Intel.

  • Win Source Part Number: 1231602
  • Series: Stratix® III E
  • Package: Tray
  • Standard Package: 24
  • Mounting Type: Surface-Mount Device (SMD)
  • I/O: 488
  • LABs/CLBs: 10200
  • Logic Elements/Cells: 255000
  • Total RAM Bit Capacity: 16672768
  • Voltage Supply: 0.86V to 1.15V
