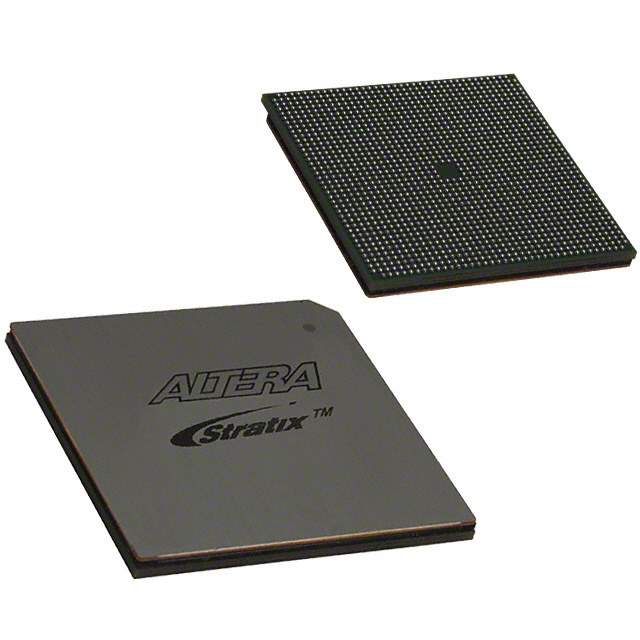

EP2S90F1508C3N Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Features series Field Programmable Gate Array (FPGA) IC 902 4520488 90960 1508-BBGA, FCBGA
Manufacturer Intel
Series Stratix® II
Package Tray
Part Status Obsolete
Number of I/O 902
Operating Temperature Range 0°C ~ 85°C (TJ)
Mounting Surface Mount
Package 1508-BBGA, FCBGA
Case / Package 1508-FBGA, FC (40x40)
Family Name EP2S90
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A001A7A
HTSUS 8542.39.0001
Other Part Number 544-1921, 973075, EP2S90F1508C3N-ND
Quantity per package 21
Popularity High
Supply and Demand Status Balance
Win Source Part Number 918258-EP2S90F1508C3N
Ultra Librarian 3D Model Ultra Librarian EP2S90F1508C3N CAD Model

Description

The Intel Stratix II is an FPGA IC that comes in a tray package.

  • I/O Pins: 902
  • Mounting Style: Surface-mount
  • Operating Temperature Range: 0°C to 85°C (TJ)
  • Logic Elements/Cells: 4520488
  • LABs/CLBs: 90960
  • Package/Case: 1508-BBGA, FCBGA
  • Family Name: EP2S90
  • Status: Obsolete
  • ECCN: 3A001A7A
  • MSL Level: 3 (168 hours)
  • REACH: Unaffected
