EP2S180F1508C4

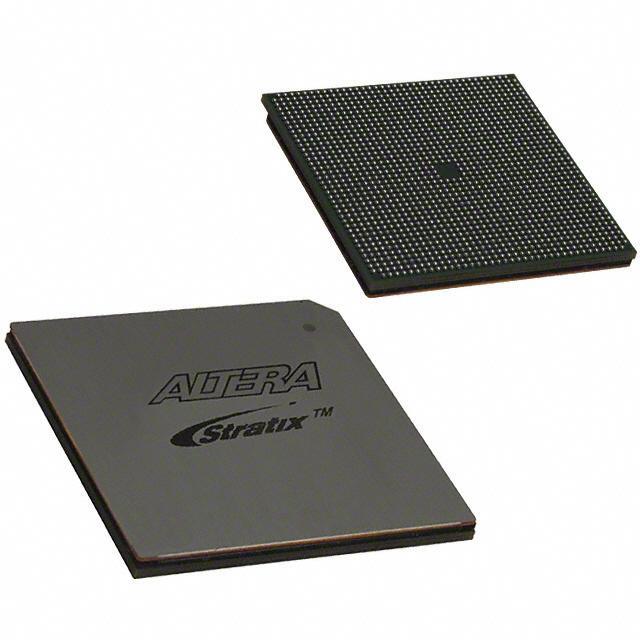

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Features series Field Programmable Gate Array (FPGA) IC 1170 9383040 179400 1508-BBGA, FCBGA
Manufacturer Intel
Series Stratix® II
Package Tray
Part Status Obsolete
Number of I/O 1170
Operating Temperature Range 0°C ~ 85°C (TJ)
Mounting Surface Mount
Package 1508-BBGA, FCBGA
Case / Package 1508-FBGA, FC (40x40)
Family Name EP2S180
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN 3A001A7A
HTSUS 8542.39.0001
Other Part Number 544-1416, 970077
Quantity per package 21
Popularity High
Supply and Demand Status Balance
Win Source Part Number 918250-EP2S180F1508C4
Ultra Librarian 3D Model Ultra Librarian EP2S180F1508C4 CAD Model

Description

The Intel EP2S180F1508C4 is a Stratix II series Field Programmable Gate Array (FPGA) IC with 1170 I/Os.

  • Package: 1508-BBGA, FCBGA tray
  • Operating Temperature Range: 0°C to 85°C
  • Status: Obsolete
  • Category: Integrated Circuits (ICs)
  • Family Name: EP2S180
  • ECCN: 3A001A7A
  • Quantity per package: 21
  • MSL level: 4 (72 hours)
  • REACH status: Unaffected
  • HTSUS: 8542.39.0001
