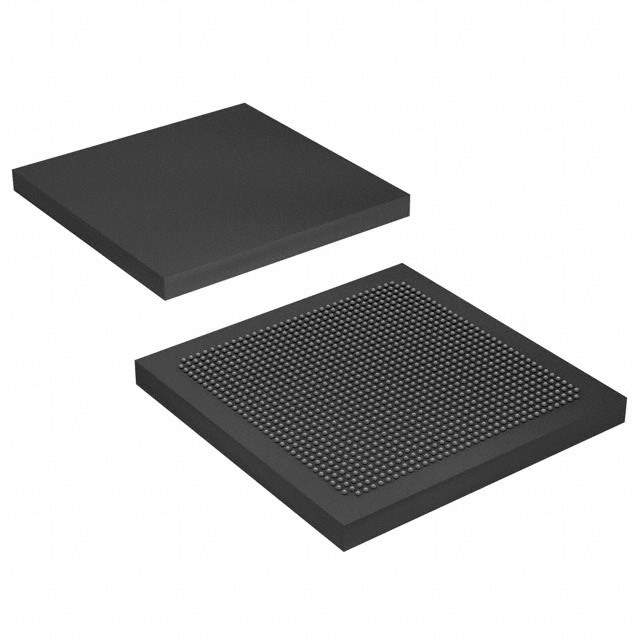

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - FPGAs (Field Programmable Gate Array)
Mfr Intel
Series Arria II GX
Package Tray
Number of LABs/CLBs 10260
Number of Logic Elements/Cells 244188
Total RAM Bits 12038144
Number of I/O 612
Voltage - Supply 0.87V ~ 0.93V
Mounting SMD (SMT)
Temperature Range - Operating 0°C ~ 85°C (TJ)
Package / Case 1152-BBGA, FCBGA
Supplier Device Package 1152-FBGA (35x35)
Base Product Number EP2AGX260
Standard Package 24
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
HTSUS 0000.00.0000
Win Source Part Number 1265098-EP2AGX260FF35C4G
Ultra Librarian 3D Model Ultra Librarian EP2AGX260FF35C4G CAD Model

Description

The Arria II GX series from Intel is a high-performance field-programmable gate array (FPGA) designed for use in embedded systems. The EP2AGX260FF35C4G model offers 10260 logic array blocks/cells, 244188 logic elements, and 12038144 total RAM bits.

  • Number of LABs/CLBs: 10260
  • Number of Logic Elements/Cells: 244188
  • Total RAM Bits: 12038144
  • Voltage - Supply: 0.87V ~ 0.93V
  • Operating Temperature: 0°C ~ 85°C
  • Package / Case: 1152-BBGA, FCBGA
  • I/O: 612
  • Mounting Type: SMD (SMT)
  • REACH Status: REACH Unaffected
  • MSL (Moisture Sensitivity Level): 3 (168 Hours)
  • Package: Tray
  • Standard Package: 24
