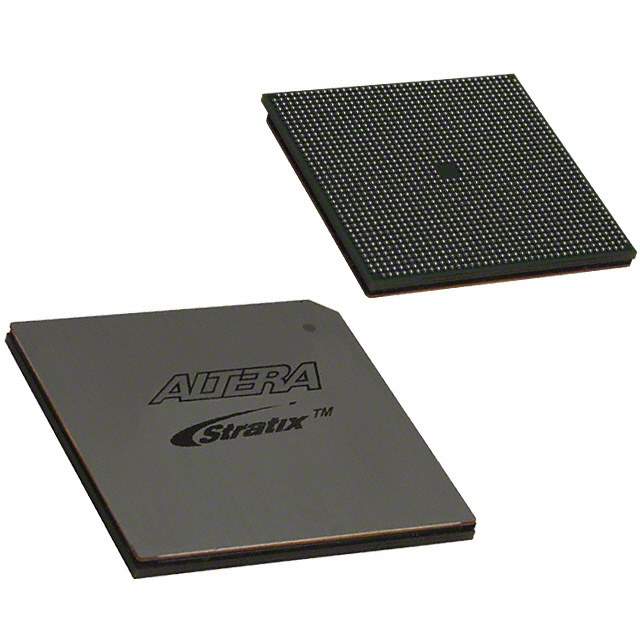

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Features series Field Programmable Gate Array (FPGA) IC 1203 7427520 79040 1508-BBGA, FCBGA
Manufacturer Intel
Series Stratix®
Package Tray
Part Status Obsolete
Number of I/O 1203
Operating Temperature Range 0°C ~ 85°C (TJ)
Mounting Surface Mount
Package 1508-BBGA, FCBGA
Case / Package 1508-FBGA, FC (40x40)
Family Name EP1S80
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A001A7A
HTSUS 8542.39.0001
Other Part Number 544-1441, 966654
Quantity per package 21
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 870488-EP1S80F1508C6
Ultra Librarian 3D Model Ultra Librarian EP1S80F1508C6 CAD Model

Description

The Intel EP1S80F1508C6 is a Stratix® series Field Programmable Gate Array (FPGA) IC that has 1203 I/O and is packaged in a 1508-BBGA, FCBGA.

  • I/O: 1203
  • Package: 1508-BBGA, FCBGA
  • Mounting: Surface mount
  • Temperature Range: 0°C to 85°C (TJ)
  • IC Status: Obsolete
  • Part Status: Obsolete
  • Supply and Demand Status: Limited
  • Standard Package: 21
