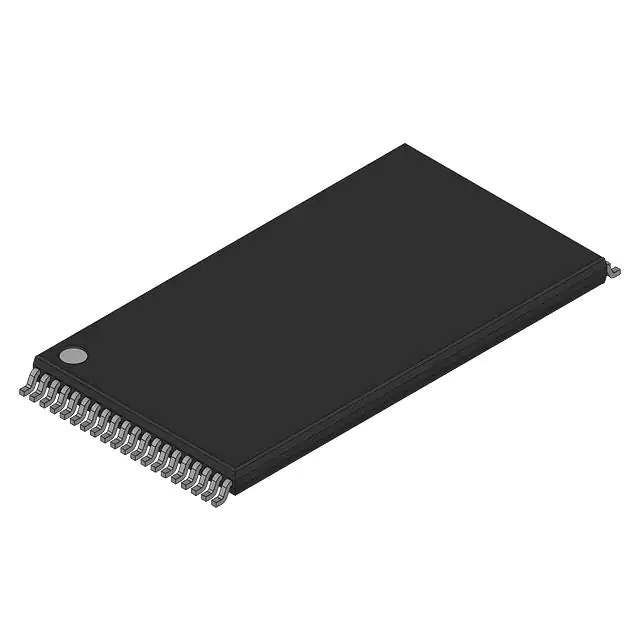

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Memory - Memory
Mfr Intel
Series 28F004Bx
Package Bulk
Product Status Active
Programmable Not Verified
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - Boot Block
Memory Size 4Mbit
Memory Organization 4M x 8
Memory Interface CUI
Write Cycle Time - Word, Page 80ns
Access Time 80 ns
Voltage - Supply 4.75V ~ 5.25V
Temperature Range - Operating 0°C ~ 70°C (TA)
Mounting Type Surface Mount
Package / Case 40-TFSOP (0.724", 18.40mm Width)
Supplier Device Package 40-TSOP
Standard Package 2,000 pcs
MSL Level 3 (168 Hours)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8542.32.0071
Win Source Part Number 587845-E28F004BVB80
Ultra Librarian 3D Model Ultra Librarian E28F004BVB80 CAD Model

Description

The 587845-E28F004BVB80 is a 4Mbit FLASH memory chip from Intel's 28F004Bx series.

  • Voltage supply range: 4.75V to 5.25V
  • Access time: 80ns
  • Mounting: surface mountable
  • Package: 40-TFSOP
  • Memory organization: 4M x 8
  • Memory format: FLASH
  • Status: active
  • Standard package: 2,000 pcs
