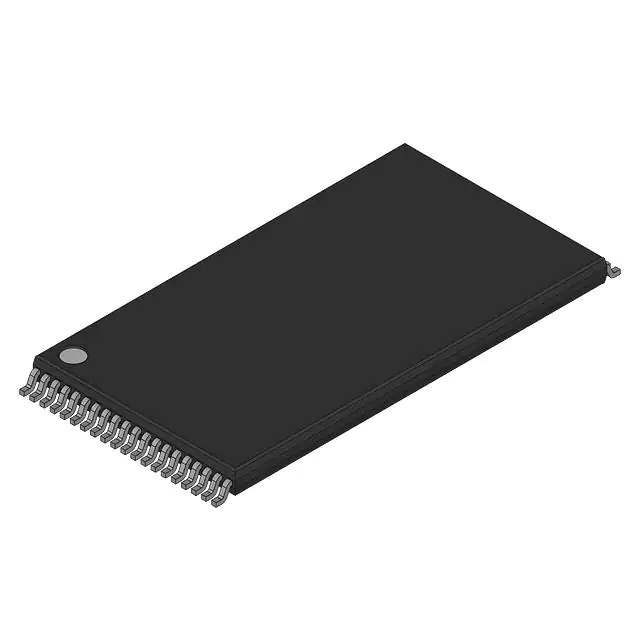

E28F002BC-T80 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Memory - Memory
Mfr Intel
Series 28F002BC
Package Bulk
Product Status Active
Programmable Not Verified
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - Boot Block
Memory Size 2Mbit
Memory Organization 256K x 8
Memory Interface CUI
Write Cycle Time - Word, Page 80ns
Access Time 80 ns
Voltage - Supply 4.5V ~ 5.5V
Temperature Range - Operating 0°C ~ 70°C (TA)
Mounting Type Surface Mount
Package / Case 40-TFSOP (0.724", 18.40mm Width)
Supplier Device Package 40-TSOP
Standard Package 1 pcs
MSL Level 3 (168 Hours)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8542.32.0071
Win Source Part Number 869987-E28F002BC-T80
Ultra Librarian 3D Model Ultra Librarian E28F002BC-T80 CAD Model

Description

The 28F002BC-T80 is a 2Mbit FLASH memory chip designed for boot block applications. It is manufactured by Intel.

  • Voltage: 4.5V to 5.5V
  • Access Time: 80ns
  • Memory Type: Non-Volatile FLASH
  • Applications: Automotive, Industrial, and Consumer Electronics
  • Package: 40-TFSOP
