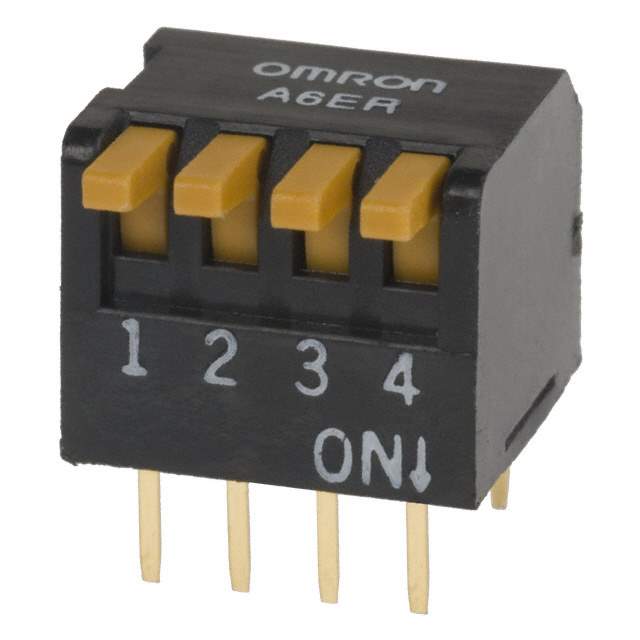

A6ER-3104 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr Omron Electronics Inc-EMC Div
Series A6ER
Package Tray
Product Status Obsolete
Circuit SPST
Number of Positions 3
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Piano
Actuator Level Raised
Contact Finish Gold
Height Above Board 0.402" (10.20mm)
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Features Sealed - Flux Protection
Temperature Range - Operating -20°C ~ 70°C
Length 0.361" (9.17mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.9065
Other Names A6ER3104
Standard Package 50
Win Source Part Number 1177828-A6ER-3104
Ultra Librarian 3D Model Ultra Librarian A6ER-3104 CAD Model

Description

The A6ER series DIP switch from Omron Electronics Inc-EMC Div is an obsolete product with a circuit configuration of SPST and actuator type of piano.

  • Pitch: 0.100" (2.54mm)
  • Positions: 3
  • Sealed: Fully sealed for flux protection
  • Contact Finish: Gold
  • Voltage Rating: 24VDC
  • Temperature Range: -20°C to 70°C
  • Mounting Type: Through-hole, right angle
  • Height Above Board: 0.402" (10.20mm)
  • Mechanical Life: 1,000 cycles
  • Electrical Life: 1,000 cycles
  • Alternative Part Number: A6ER3104
