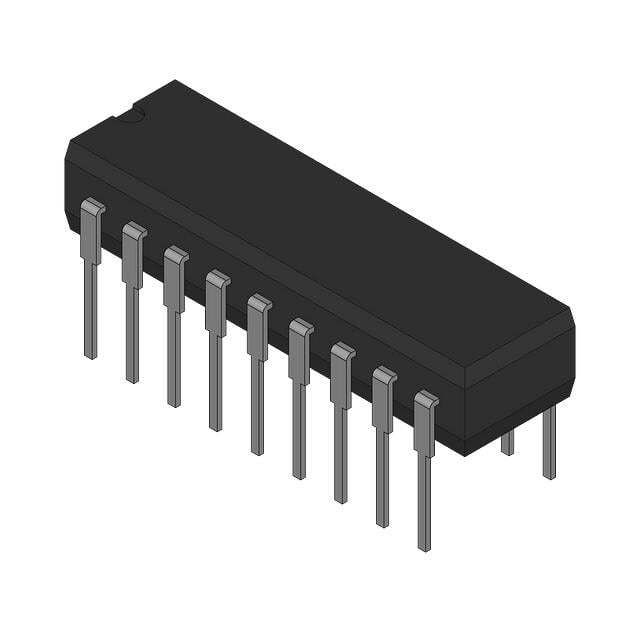

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Memory - Memory
Mfr Intel
Package Bulk
Product Status Active
Programmable Not Verified
Memory Type Volatile
Memory Format SRAM
Technology SRAM - Asynchronous
Memory Size 4Kbit
Memory Organization 1K x 4
Memory Interface Parallel
Write Cycle Time - Word, Page 200ns
Access Time 200 ns
Voltage - Supply 4.5V ~ 5.5V
Temperature Range - Operating 0°C ~ 70°C (TA)
Mounting Type Through Hole
Package / Case 18-CDIP
Supplier Device Package 18-CDIP
Standard Package 1 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.32.0041
Win Source Part Number 867988-D2114AL2
Ultra Librarian 3D Model Ultra Librarian D2114AL2 CAD Model

Description

The 867988-D2114AL2 is a memory integrated circuit from Intel.

  • Category: Integrated Circuits (ICs) - Memory - Memory
  • Package: Bulk package
  • Standard Package: 1 piece
  • Technology: SRAM - Asynchronous
  • Memory Size: 4Kbit
  • Access Time: 200 ns
  • Voltage Supply Range: 4.5V to 5.5V
  • Mounting: Through-hole
  • Package: 18-CDIP
  • MSL Level: 3 (168 hours)
  • REACH: Unaffected
  • ECCN: EAR99
