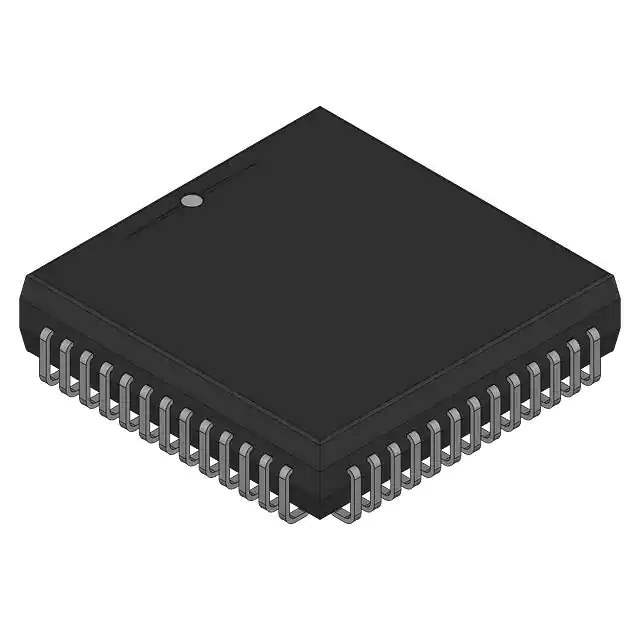

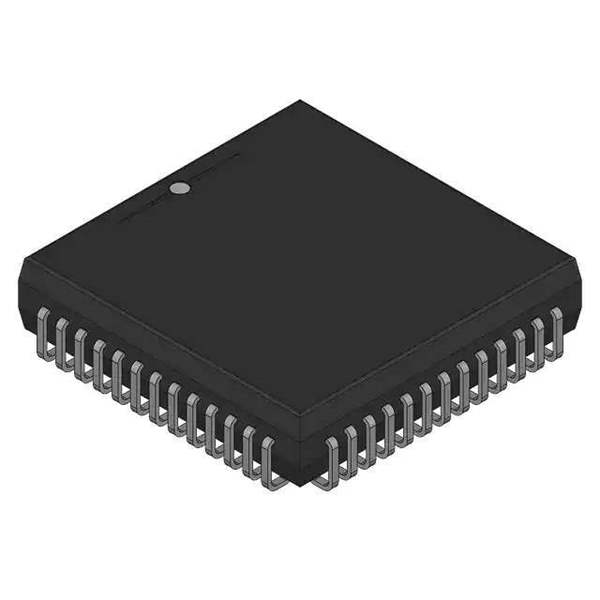

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microcontrollers
Mfr Intel
Series 87C
Package Bulk
Product Status Active
Programmable Not Verified
Core Processor MCS 96
Core Size 16-Bit
Speed 16MHz
Connectivity SIO
Peripherals PWM
Number of I/O 41
Program Memory Size 16KB (16K x 8)
Program Memory Type OTP
RAM Size 512 x 8
Voltage - Supply (Vcc/Vdd) 4.5V ~ 5.5V
Data Converters A/D 6x10b
Oscillator Type External
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 52-LCC (J-Lead)
Supplier Device Package 52-PLCC (19x19)
Base Product Number AN87C196
Standard Package 1 pcs
MSL Level 3 (168 Hours)
REACH Status Vendor Undefined
HTSUS 0000.00.0000
Win Source Part Number 751842-AN87C196JRF8
Ultra Librarian 3D Model Ultra Librarian AN87C196JRF8 CAD Model

Description

The 751842-AN87C196JRF8 is an embedded microcontroller from the 87C series by Intel.

  • Core Processor: 16-bit
  • Speed: 16MHz
  • Program Memory Size: 16KB
  • RAM Size: 512 x 8
  • Peripherals: PWM and a 6x10b A/D converter
  • Supply Voltage Range: 4.5V to 5.5V
  • Temperature Range: -40°C to 125°C
