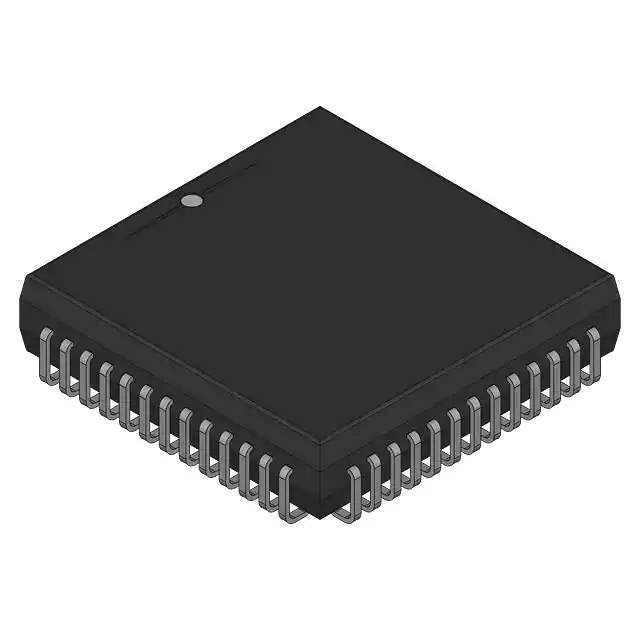

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microcontrollers
Mfr Intel
Series 87C196JR
Package Bulk
Product Status Active
Programmable Not Verified
Core Processor 87C196JR
Core Size 16-Bit
Speed 16MHz
Connectivity CANbus, Serial Port, SSIO, UART/USART
Peripherals PWM
Number of I/O 41
Program Memory Size 16KB (16K x 8)
Program Memory Type EPROM
RAM Size 512 x 8
Voltage - Supply (Vcc/Vdd) 4.5V ~ 5.5V
Data Converters A/D 6x10b
Oscillator Type External, Internal
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting Type Surface Mount
Package / Case 52-LCC (J-Lead)
Supplier Device Package 52-PLCC
Base Product Number AN87C196
Standard Package 55 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8542.31.0001
Win Source Part Number 52266-AN87C196JR
Ultra Librarian 3D Model Ultra Librarian AN87C196JR CAD Model

Description

Overview of AN87C196JR

The AN87C196JR is a high-performance 16-bit microcontroller with a highly integrated architecture. It offers exceptional computing power and specialized peripherals, making it an ideal choice for automotive, industrial control, and various embedded applications.

Applications

  • Automotive control systems
  • Industrial automation
  • Embedded systems
  • Consumer electronics

Features and Benefits

  • 16-bit CPU: Enhanced processing speed and efficiency.
  • Integrated peripherals: Includes timers, analog-to-digital converters, and PWM modules for versatile applications.
  • Robust interrupt system: Supports multiple interrupt sources for responsive performance in complex systems.
  • Powerful instruction set: Facilitates complex computations and real-time performance.

Additional Details

The AN87C196JR microcontroller is designed to offer reliable performance in demanding environments. It supports varying power supply voltages, ensuring compatibility with a wide range of electronic architectures. With its advanced feature set, this microcontroller delivers a competitive edge in developing innovative solutions.
