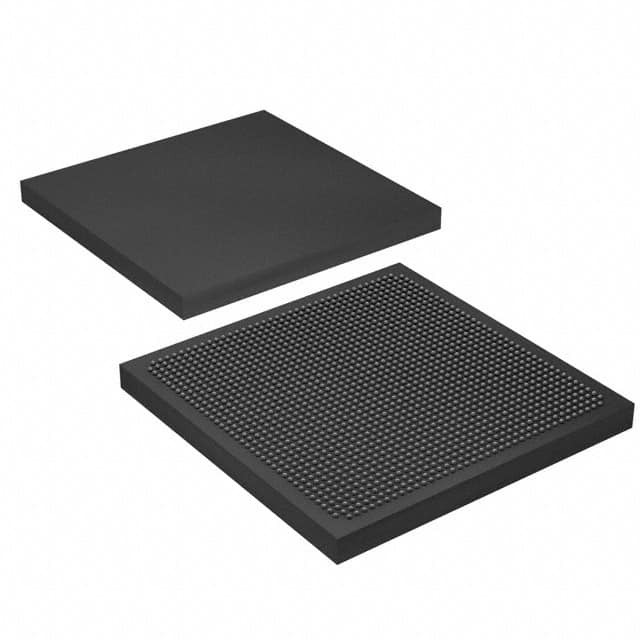

Same model may have multiple batches, images only for reference.
5SGXMA9K2H40I2N
Same model may have multiple batches, images only for reference.

5SGXMA9K2H40I2N

Part No 5SGXMA9K2H40I2N
Manufacturer Intel
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 696 I/O 1517HBGA
Datasheet
5SGXMA9K2H40I2N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - FPGAs (Field Programmable Gate Array)
Mfr Intel
Series Stratix® V GX
Package Tray
Product Status Obsolete
Programmable Not Verified
Number of LABs/CLBs 317000
Number of Logic Elements/Cells 840000
Total RAM Bits 53248000
Number of I/O 696
Voltage - Supply 0.87V ~ 0.93V
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 100°C (TJ)
Package / Case 1517-BBGA, FCBGA
Supplier Device Package 1517-HBGA (45x45)
Base Product Number 5SGXMA9
Standard Package 12 pcs
MSL Level 3 (168 Hours)
ECCN 3A001A2C
HTSUS 8542.39.0001
Win Source Part Number 856796-5SGXMA9K2H40I2N
Ultra Librarian 3D Model Ultra Librarian 5SGXMA9K2H40I2N CAD Model

Description

The 5SGXMA9K2H40I2N is an embedded Field Programmable Gate Array (FPGA) from Intel's Stratix V GX series manufactured by Intel.

  • Package Type: Tray
  • Standard Package: 12 pieces
  • I/Os: 696
  • LABs/CLBs: 317000
  • Logic Elements/Cells: 840000
  • RAM Capacity: 53248000 bits
  • Voltage Supply Range: 0.87V to 0.93V
  • Temperature Range: -40°C to 100°C
