5SGXMA7K2F40C2N

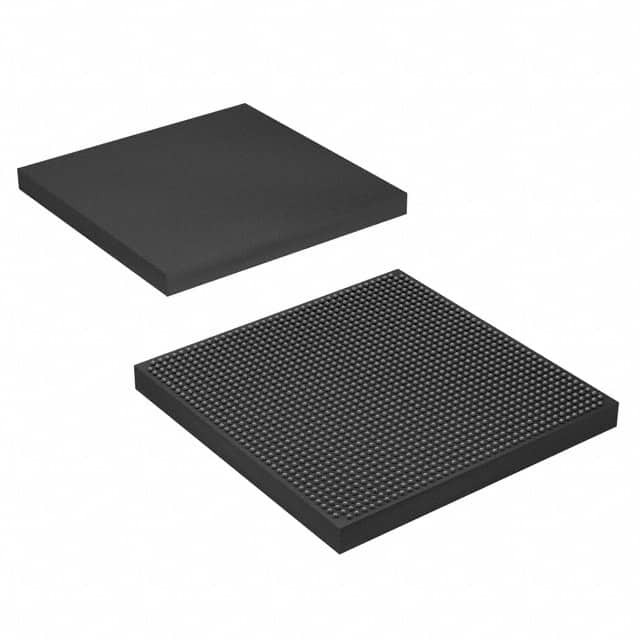

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - FPGAs (Field Programmable Gate Array)
Mfr Intel
Series Stratix® V GX
Package Tray
Product Status Obsolete
Programmable Not Verified
Number of LABs/CLBs 234720
Number of Logic Elements/Cells 622000
Total RAM Bits 51200000
Number of I/O 696
Voltage - Supply 0.87V ~ 0.93V
Mounting Type Surface Mount
Temperature Range - Operating 0°C ~ 85°C (TJ)
Package / Case 1517-BBGA, FCBGA
Supplier Device Package 1517-FBGA (40x40)
Base Product Number 5SGXMA7
Standard Package 21 pcs
MSL Level 3 (168 Hours)
ECCN 3A001A2C
HTSUS 8542.39.0001
Win Source Part Number 856795-5SGXMA7K2F40C2N
Ultra Librarian 3D Model Ultra Librarian 5SGXMA7K2F40C2N CAD Model

Description

The 5SGXMA7K2F40C2N is an embedded Field Programmable Gate Array (FPGA) from Intel's Stratix V GX series manufactured by Intel.

  • Package Type: Tray
  • Standard Package: 21 pieces
  • I/Os: 696
  • LABs/CLBs: 234720
  • Logic Elements/Cells: 622000
  • RAM Capacity: 51200000 bits
  • Voltage Supply Range: 0.87V to 0.93V
  • Temperature Range: 0°C to 85°C
