5SGXMA5K2F40C2N

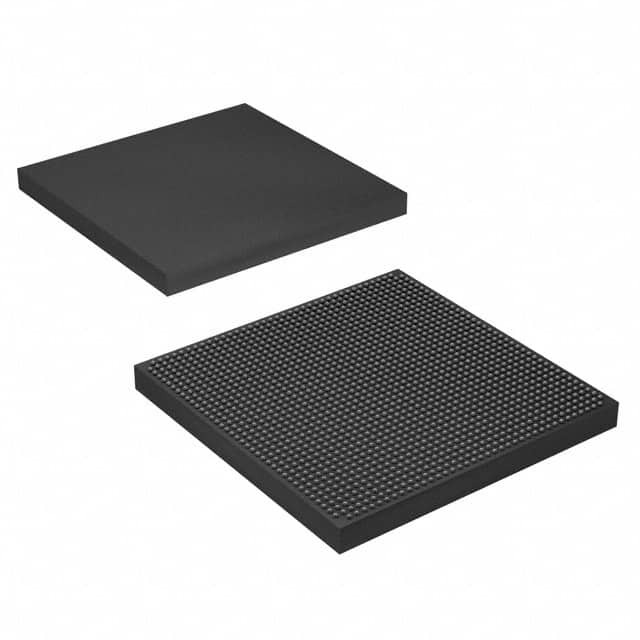

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - FPGAs (Field Programmable Gate Array)
Mfr Intel
Series Stratix® V GX
Package Tray
Product Status Obsolete
Programmable Not Verified
Number of LABs/CLBs 185000
Number of Logic Elements/Cells 490000
Total RAM Bits 46080000
Number of I/O 696
Voltage - Supply 0.87V ~ 0.93V
Mounting Type Surface Mount
Temperature Range - Operating 0°C ~ 85°C (TJ)
Package / Case 1517-BBGA, FCBGA
Supplier Device Package 1517-FBGA (40x40)
Base Product Number 5SGXMA5
Standard Package 21 pcs
MSL Level 3 (168 Hours)
ECCN 3A001A2C
HTSUS 8542.39.0001
Win Source Part Number 856793-5SGXMA5K2F40C2N
Ultra Librarian 3D Model Ultra Librarian 5SGXMA5K2F40C2N CAD Model

Description

The 856793-5SGXMA5K2F40C2N is an embedded FPGA from Intel's Stratix® V GX series manufactured by Intel.

  • Package: 1517-BBGA
  • I/O pins: 696
  • LABs/CLBs: 185,000
  • Logic elements/cells: 490,000
  • RAM capacity: 46,080,000 bits
  • Voltage supply range: 0.87V to 0.93V
  • Status: Active (obsolete)
