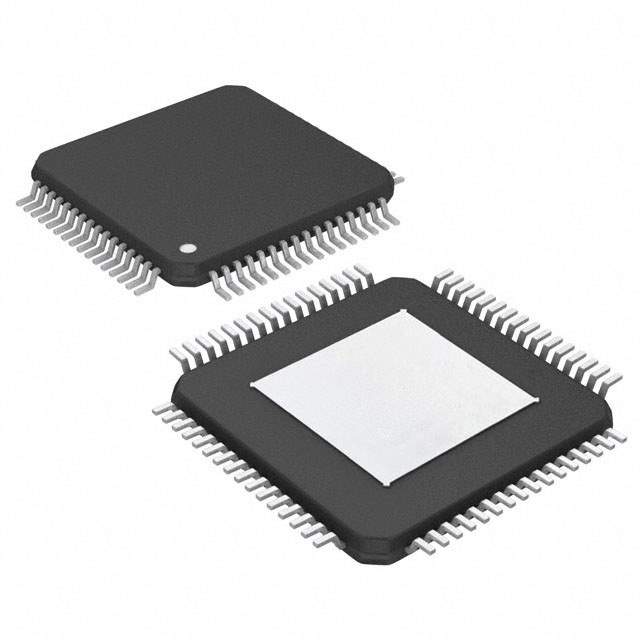

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Intel
Packaging Tray
Programmable Type In System Programmable
Delay Time tpd(1) Max 7.5ns
Voltage Supply - Internal 1.71V ~ 1.89V
Number of Logic Elements/Blocks 40
Number of Macrocells 32
Number of I/O 54
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Manufacturer Package 64-TQFP Exposed Pad
Supplier Device Package 64-EQFP (7x7)
Part Number Series 5M40Z
Manufacturer Pack Quantity 250
MSL Level 3 (168 Hours)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 811089-5M40ZE64A5N
Ultra Librarian 3D Model Ultra Librarian 5M40ZE64A5N CAD Model

Description

The Intel 5M40ZE64A5N is a programmable logic device with 54 I/Os and 40 logic elements/blocks.

  • Delay Time tpd(1) max: 7.5ns
  • Voltage Supply: 1.71V ~ 1.89V
  • In-System Programmable: Yes
  • Macrocells: 32
  • Supplier Device Package: 64-EQFP (7x7)
  • Temperature Range: -40°C ~ 125°C
