Products specifications Report Issue?

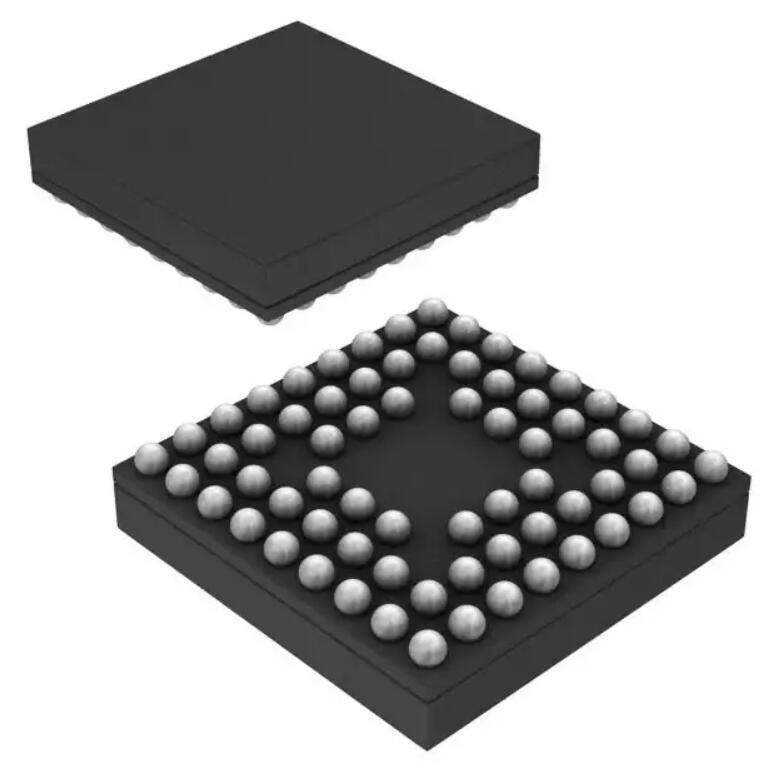

Win Source Part Number WS1196665-5M240ZM68C4N
Win Source Part Number Cross
Manufacturer Intel
Category Integrated Circuits (ICs) Embedded CPLDs (Complex Programmable Logic Devices)
Series MAX® V
Package Tray
Product Status Active
Programmable Type In System Programmable
Delay Time tpd(1) Max 7.5 ns
Voltage Supply - Internal 1.71V ~ 1.89V
Operating Temperature 0°C ~ 85°C (TJ)
Ultra Librarian 3D Model Ultra Librarian 5M240ZM68C4N CAD Model

Description

The Intel MAX V is an embedded CPLD (Complex Programmable Logic Device) that offers high performance and flexibility for a wide range of applications.

  • Number of Logic Elements/Blocks: 240
  • Delay Time tpd1: 7.5ns
  • Voltage - Supply: 1.71V to 1.89V
  • Programmable Type: In-System Programmable
  • Package: Tray
  • Operating Temperature: 0°C to 85°C
