Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - FPGAs (Field Programmable Gate Array)
Mfr Intel
Series MAX® 10
Package Tray
Number of LABs/CLBs 2500
Number of Logic Elements/Cells 40000
Total RAM Bits 1290240
Number of I/O 500
Voltage - Supply 1.15V ~ 1.25V
Mounting SMD (SMT)
Temperature Range - Operating 0°C ~ 85°C (TJ)

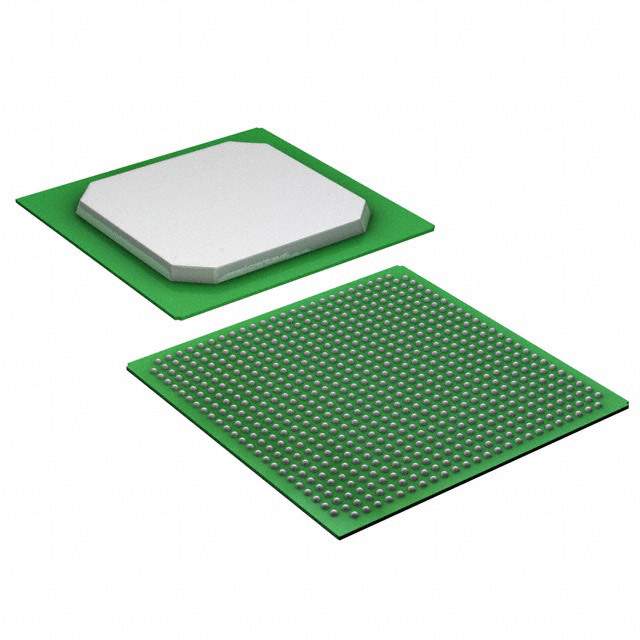

Package / Case 672-BGA
Supplier Device Package 672-FBGA (27x27)
Other Names 968826,544-3118
Standard Package 40
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991D
HTSUS 8542.39.0001
Win Source Part Number 1265063-10M40DCF672C8G
Ultra Librarian 3D Model Ultra Librarian 10M40DCF672C8G CAD Model

Description

The MAX® 10 series is an embedded FPGA (Field Programmable Gate Array) integrated circuit that is designed for various applications.

  • Package: 672-BGA
  • Supplier Device Package: 672-FBGA (27x27)
  • Standard Package: 40
  • LABs/CLBs: 2500
  • Logic Elements/Cells: 40000
  • Total RAM bits: 1290240
  • I/O: 500
  • Voltage Supply: 1.15V to 1.25V
  • Temperature Range: 0°C to 85°C (TJ)
  • Supplier: Intel
  • ECCN: 3A991D
  • REACH: Unaffected
  • HTSUS Code: 8542.39.0001
