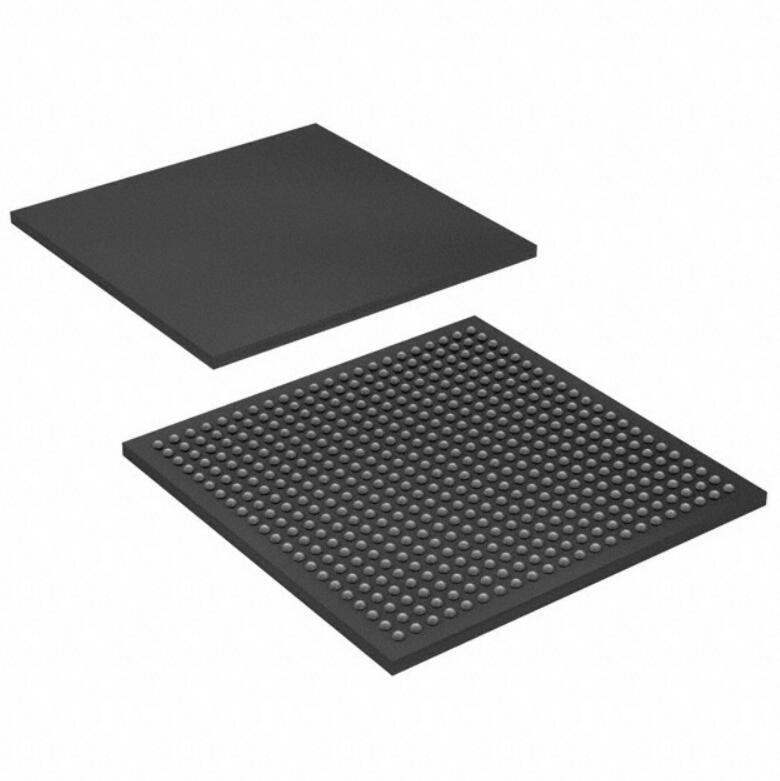

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1201466-10M16DCF484I7G
Win Source Part Number Cross
Manufacturer Intel
Category Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array)
Series MAX® 10
Package Tray
Product Status Active
Number of LABs/CLBs 1000
Number of Logic Elements/Cells 16000
Total RAM Bits 562176
Number of I/O 320
Voltage - Supply 1.15V ~ 1.25V
Mounting Type Surface Mount
Ultra Librarian 3D Model Ultra Librarian 10M16DCF484I7G CAD Model

Description

The Intel MAX® 10 FPGA 1201466 is an integrated circuit designed for embedded applications.

  • Series: MAX® 10
  • Packaging: Tray
  • I/O Pins: 320
  • LABs/CLBs: 1000
  • RAM Capacity: 562176 bits
  • Voltage Supply: 1.15V to 1.25V
  • Mounting: Surface Mountable
  • Status: Active
