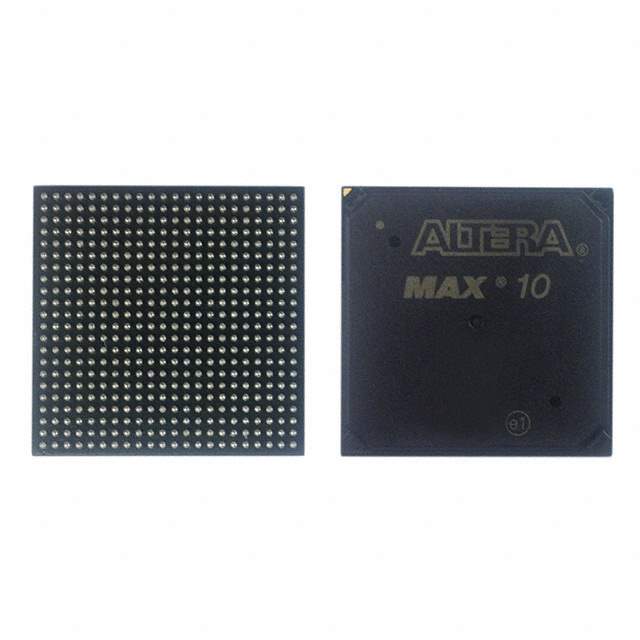

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - FPGAs (Field Programmable Gate Array)
Mfr Intel
Series MAX® 10
Package Tray
Number of LABs/CLBs 1000
Number of Logic Elements/Cells 16000
Total RAM Bits 562176
Number of I/O 246
Voltage - Supply 1.15V ~ 1.25V
Mounting SMD (SMT)
Temperature Range - Operating 0°C ~ 85°C (TJ)
Package / Case 324-LFBGA
Supplier Device Package 324-UBGA (15x15)
Other Names 544-3103,968104
Standard Package 119
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991D
HTSUS 8542.39.0001
Win Source Part Number 1265073-10M16DAU324C8G
Ultra Librarian 3D Model Ultra Librarian 10M16DAU324C8G CAD Model

Description

The 1265073-10M16DAU324C8G is an integrated circuit that belongs to the MAX® 10 series.

  • LABs/CLBs: 1000
  • Logic Elements/Cells: 16000
  • I/O Channels: 246
  • Total RAM: 562176 bits
  • Voltage Range: 1.15V to 1.25V
  • Package: 324-LFBGA
  • Supplier Device Package: 324-UBGA (15x15)
  • Device Type: Embedded-FPGAs (Field Programmable Gate Array)
  • Operating Temperature Range: 0°C to 85°C
  • ECCN: 3A991D
  • REACH: Unaffected
  • Mfr: Intel
