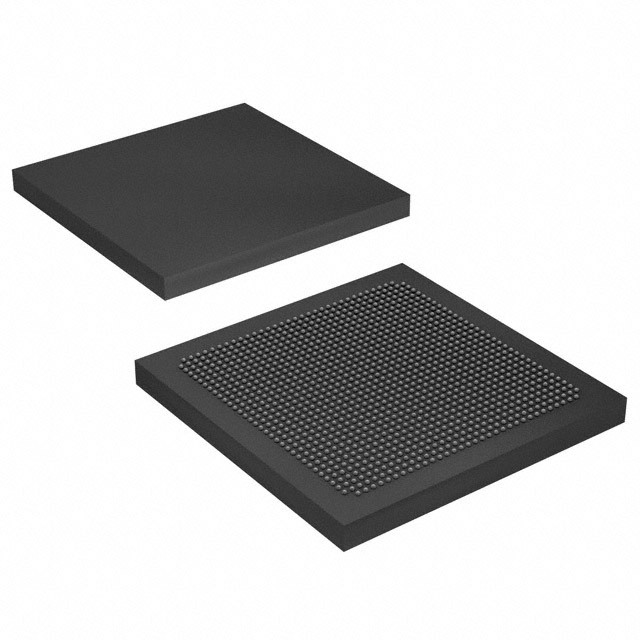

Same model may have multiple batches, images only for reference.
10AS066K4F35E3SG Intel
Same model may have multiple batches, images only for reference.

10AS066K4F35E3SG

Part No 10AS066K4F35E3SG
Manufacturer Intel
Catalog Embedded - System On Chip (SoC)
Description IC SOC CORTEX-A9 1.5GHZ 1152FBGA / Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ System On Chip (SOC) IC Arria 10 SX FPGA - 660K Logic Elements 1.5GHz 1152-FBGA, FC (35x35)
Datasheet
10AS066K4F35E3SG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - System On Chip (SoC)
Mfr Intel
Series Arria 10 SX
Package Tray
Product Status Active
Architecture MCU, FPGA
Core Processor Dual ARM® Cortex®-A9 MPCore™ with CoreSight™
Flash Size -
RAM Size 256KB
Peripherals DMA, POR, WDT
Connectivity EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SPI, UART/USART, USB OTG
Speed 1.5GHz
Primary Attributes FPGA - 660K Logic Elements
Temperature Range - Operating 0°C ~ 100°C (TJ)
Package / Case 1152-BBGA, FCBGA
Supplier Device Package 1152-FBGA, FC (35x35)
Number of I/O 396
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A001A7B
HTSUS 8542.39.0001
Win Source Part Number 1357289-10AS066K4F35E3SG
Ultra Librarian 3D Model Ultra Librarian 10AS066K4F35E3SG CAD Model

Description

The Arria 10 SX is an embedded system-on-chip (SoC) integrated circuit (IC) from the Arria 10 series by Intel.

  • Core Processor: Dual ARM® Cortex®-A9 MPCore™ with CoreSight™
  • Speed: 1.5GHz
  • RAM Size: 256KB
  • Peripherals: DMA, POR, WDT
  • Number of I/O: 396
  • Voltage - I/O: 0.87V ~ 1.03V
  • Operating Temperature: 0°C ~ 100°C
  • Mounting Type: Surface Mount
  • Package / Case: 1152-BBGA, FCBGA
  • Supplier Device Package: 1152-FBGA (35x35)
  • Base Part Number: Arria 10
  • FPGA: 660K Logic Elements
  • Connectivity: EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SPI, UART/USART, USB OTG
