Same model may have multiple batches, images only for reference.

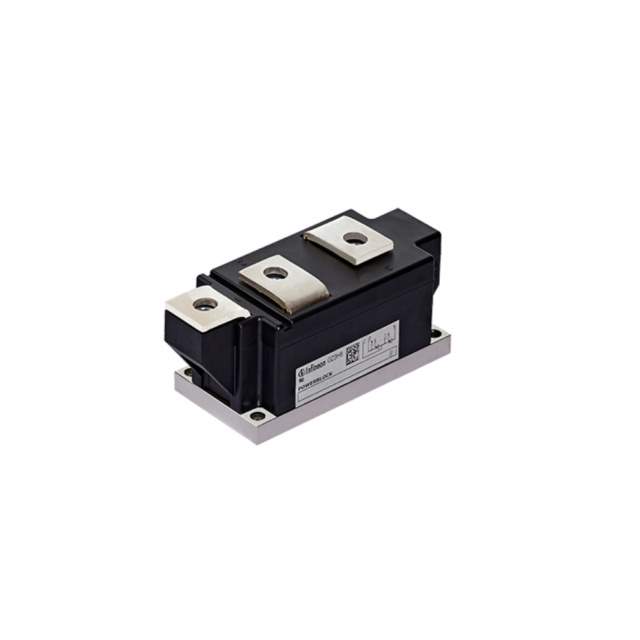

TT500N16KOFHPSA2 Real Image
Same model may have multiple batches, images only for reference.

TT500N16KOFHPSA2

Part No TT500N16KOFHPSA2
Manufacturer Infineon Technologies
Catalog TVS - Thyristors
Description SCR MODULE 1.6KV 900A MODULE / SCR Module 1.6 kV 900 A Series Connection - All SCRs Chassis Mount Module
Datasheet
TT500N16KOFHPSA2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Thyristors - SCRs - Modules
Mfr Infineon Technologies
Package Bulk
Structure Series Connection - All SCRs
Number of SCRs, Diodes 2 SCRs
Voltage - Off State 1.6 kV
Current - On State (It (AV)) (Max) 500 A
Current - On State (It (RMS)) (Max) 900 A
Voltage - Gate Trigger (Vgt) (Max) 2.2 V
Current - Gate Trigger (Igt) (Max) 250 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 17000A @ 50Hz
Current - Hold (Ih) (Max) 300 mA
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Chassis Mount
Package / Case Module
Base Product Number TT500N16
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.30.0080
Other Names SP001146866,TT500N16KOF-ND,TT500N16KOF
Standard Package 2
Win Source Part Number 1101579-TT500N16KOFHPSA2
Ultra Librarian 3D Model Ultra Librarian TT500N16KOFHPSA2 CAD Model

Description

The TT500N16KOFHPSA2 is a thyristor module from Infineon Technologies.

  • Voltage Off State: 1.6kV
  • Voltage Gate Trigger: 2.2V
  • SCRs: Two SCRs
  • Connection: Series connection
  • Current Hold (Max): 300mA
  • On State Current (It (AV)): up to 500A
  • On State Current (It (RMS)): up to 900A
  • Non-Repetitive Surge Current: up to 17000A @ 50Hz
  • Operating Temperature: -40°C to 125°C
  • Mounting: Suitable for chassis mounting
  • Ideal For: Applications like motor control, power supplies, and lighting control
