Same model may have multiple batches, images only for reference.

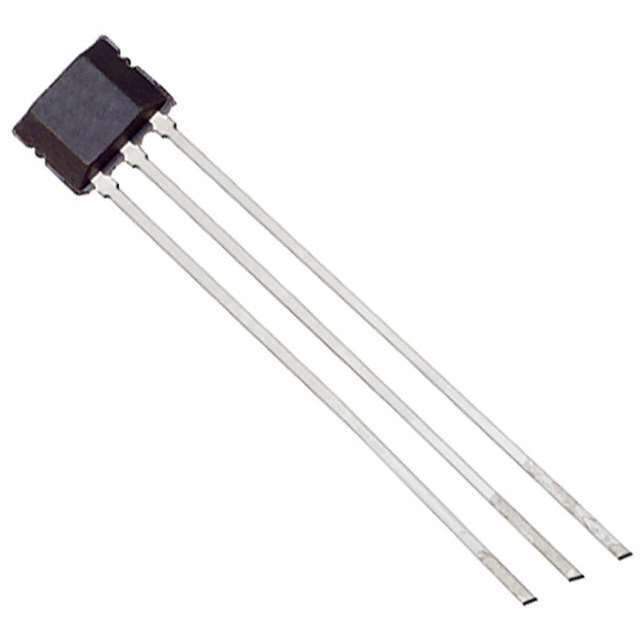

TLV4906LHALA1 Real Image
Same model may have multiple batches, images only for reference.

TLV4906LHALA1

Part No TLV4906LHALA1
Manufacturer Infineon Technologies
Catalog Magnetic Sensors - Linear, Compass (ICs)
Description MAGNETIC SWITCH UNIPOLAR SSO-3-2 / Digital Switch Unipolar Switch Open Collector Hall Effect PG-SSO-3-2
Datasheet
TLV4906LHALA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Magnetic Sensors - Switches (Solid State)
Mfr Infineon Technologies
Series Automotive, AEC-Q100
Package Tape & Box (TB)
Product Status Obsolete
Function Unipolar Switch
Technology Hall Effect
Polarization South Pole
Sensing Range 13.9mT Trip, 4.7mT Release
Test Condition -40°C ~ 85°C
Voltage - Supply 2.7V ~ 18V
Current - Supply (Max) 6mA
Current - Output (Max) 20mA
Output Type Open Collector
Features Temperature Compensated
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Through Hole
Supplier Device Package PG-SSO-3-2
Package / Case 3-SSIP, SSO-3-02
Base Product Number TLV4906
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names TLV4906L,INFINFTLV4906LHALA1,SP000604324,TLV4906L-ND,TLV4906LHALA1TB,2156-TLV4906LHALA1
Standard Package 2,000
Win Source Part Number 1111969-TLV4906LHALA1
Ultra Librarian 3D Model Ultra Librarian TLV4906LHALA1 CAD Model

Description

The TLV4906LHALA1 is a magnetic sensor switch that belongs to the Magnetic Sensors - Switches (Solid State) category.

  • Sensing Range: 13.9mT Trip, 4.7mT Release
  • Polarization: South Pole
  • Current - Supply (Max): 6mA
  • Current - Output (Max): 20mA
  • Operating Temperature: -40°C to 85°C
  • Voltage - Supply: 2.7V ~ 18V
  • Mounting Type: Through Hole
  • Package / Case: 3-SSIP, SSO-3-02
