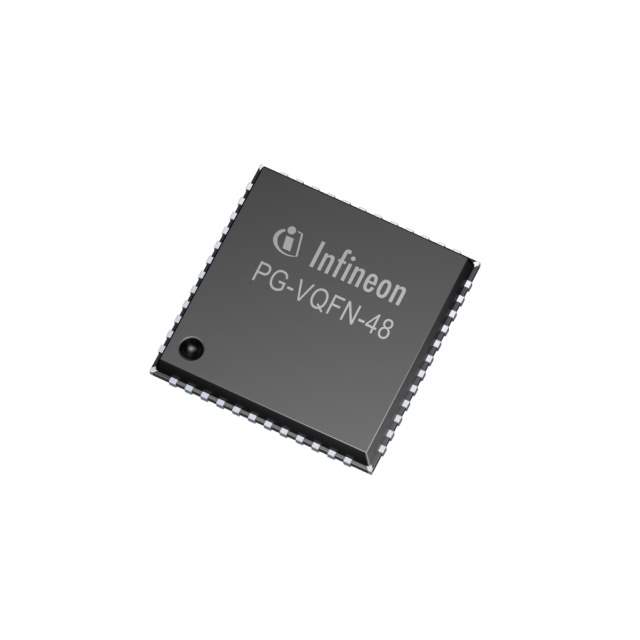

TLE9834QXXUMA2 Real Image
Same model may have multiple batches, images only for reference.

TLE9834QXXUMA2

Part No TLE9834QXXUMA2
Manufacturer Infineon Technologies
Catalog Embedded - Microcontrollers - Application Specific
Description EMBEDDED POWER / MCU 8-bit 8051 CISC 64KB Flash 3.3V/5V/9V/12V/15V/18V/24V Automotive 48-Pin VQFN EP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Infineon Technologies
Packaging Reel package
Part Status Obsolete(EOL)
Applications Automotive
Core Processor XC800
Program Memory Type FLASH (64 kB)
RAM Size 3.25K x 8
Interface LIN, SSI, UART
Number of I/O 11
Operating Supply Voltage 3 V ~ 27 V
Operating Temperature Range -40°C ~ 150°C (TJ)
Mounting SMD
Package 48-VFQFN Exposed Pad
Manufacturer Package PG-VQFN-48-29
Win Source Part Number 797003-TLE9834QXXUMA2
Popularity Medium
Supply and Demand Status Limited
Family Name TLE9834Q
Introduction Date March 19, 2012
ECCN 3A991.a.2
Halogen Free Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian TLE9834QXXUMA2 CAD Model

Description

The Infineon TLE9834QXXUMA2 is an integrated circuit (IC) designed for automotive applications.

  • Package Size: 48-VFQFN Exposed Pad
  • Operating Supply Voltage: 3 V to 27 V
  • Interface: LIN, SSI, UART
  • I/Os: 11
  • Program Memory Type: FLASH (64 kB)
  • RAM Size: 3.25K x 8
  • Status: Obsolete (EOL) (March 2012)
  • Compliance: Halogen-free
  • Family: TLE9834Q
  • Packaging: Reel
