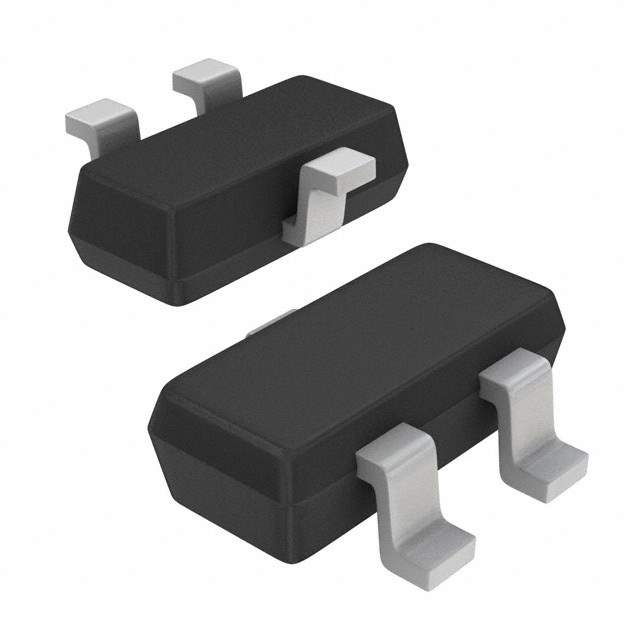

TLE49762KHTSA1 Real Image
Same model may have multiple batches, images only for reference.

TLE49762KHTSA1

Part No TLE49762KHTSA1
Manufacturer Infineon Technologies
Catalog Magnetic Sensors - Switches (Solid State)
Description MAGNETIC SWITCH UNIPOLAR SC59 / Hall Effect Sensor Unipolar 3.3V/5V/9V/12V/15V/18V Automotive 3-Pin SC-59 T/R
Datasheet
TLE49762KHTSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Infineon Technologies
Series TLE
Packaging Reel package
Function Unipolar Switch
Technology Hall Effect
Polarization South Pole
Operating Supply Voltage 3 V ~ 18 V
Maximum Supply Current 17mA
Output Type Open Collector
Features Temperature Compensated
Operating Temperature Range -40°C ~ 150°C (TJ)
Package TO-236-3, SC-59, SOT-23-3
Manufacturer Package SC-59
Win Source Part Number 796973-TLE49762KHTSA1
Popularity Medium
Supply and Demand Status Balance
Family Name TLE4976-2K
Introduction Date December 08, 2008
ECCN EAR99
Halogen Free Not Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian TLE49762KHTSA1 CAD Model

Description

The Infineon Technologies TLE49762KHTSA1 is a temperature compensated Hall Effect sensor with an operating temperature range of -40°C to 150°C (TJ).

  • Output Type: Open collector
  • Switch Function: Unipolar
  • Polarization: South pole
  • Package: TO-236-3, SC-59, SOT-23-3
  • Maximum Supply Current: 17mA
  • Sensing Range: Not Specified
  • Supply and demand status: Balance
  • Alternative parts: A1146ELH-T, A1146LLH-T, A1140LLH-T, and A1152LLHLX-T
