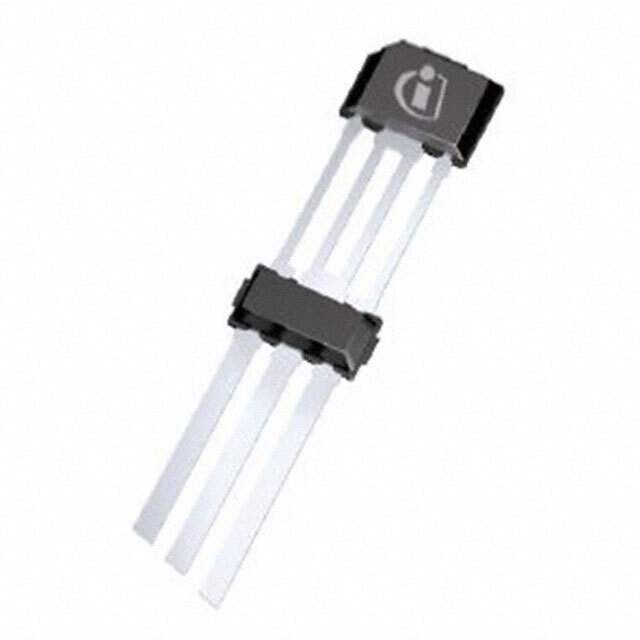

Same model may have multiple batches, images only for reference.

TLE4929CXAFM28HAMA1

Name: TLE4929CXAFM28HAMA1
Brand: Infineon Technologies
SKU: 1345342
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TLE4929CXAFM28HAMA1
Manufacturer	Infineon Technologies
Catalog	Magnetic Sensors - Linear, Compass (ICs)
Description	SENSOR HALL EFFECT ANALOG SO-3 / Hall Effect Sensor Single Axis PG-SSO-3-52
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Sensors, Transducers - Magnetic Sensors - Linear, Compass (ICs)
Mfr	Infineon Technologies
Series	Automotive, AEC-Q100
Package	Cut Tape (CT) Tape & Box (TB)
Technology	Hall Effect
Axis	Single
Output Type	Analog Voltage
Sensing Range	±120mT
Voltage - Supply	4V ~ 16V
Current - Supply (Max)	13.4mA
Current - Output (Max)	15mA
Resolution	16 b
Temperature Range - Operating	-40°C ~ 185°C (TJ)
Supplier Device Package	PG-SSO-3-52
Mounting Type	Through Hole
Package / Case	3-SIP Module
Base Product Number	TLE4929
Standard Package	1,500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
Win Source Part Number	1345342-TLE4929CXAFM28HAMA1
Ultra Librarian 3D Model	Ultra Librarian TLE4929CXAFM28HAMA1 CAD Model

Alternative Products

Description

The TLE4929CXAFM28HAMA1 is a Hall Effect magnetic sensor suitable for automotive applications.

Axis: Single-Axis
Sensing Range: ±120mT
Resolution: 16 bits
Output Type: Analog Voltage
Voltage Supply Range: 4V to 16V
Maximum Current Supply: 13.4mA
Maximum Current Output: 15mA
Package: 3-SIP Module
Operating Temperature Range: -40°C to 185°C (TJ)
REACH: Unaffected
ECCN: EAR99
Application: Automotive
