Same model may have multiple batches, images only for reference.

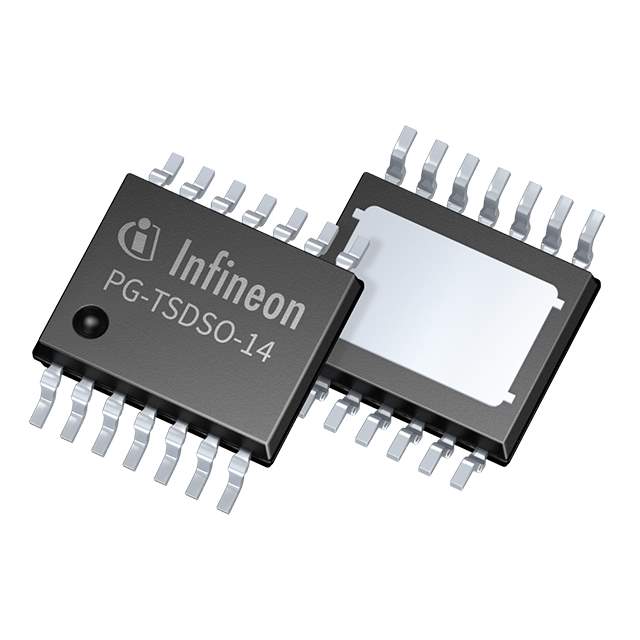

TLD23313EPXUMA1 Real Image
Same model may have multiple batches, images only for reference.

TLD23313EPXUMA1

Part No TLD23313EPXUMA1
Manufacturer Infineon Technologies
Catalog PMIC - LED Drivers
Description IC LED DRVR LIN PWM 60MA 14TSDSO / LED Driver IC 3 Output Linear PWM Dimming 60mA PG-TSDSO-14
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - LED Drivers
Mfr Infineon Technologies
Series Automotive, AEC-Q100, LITIX™
Package Tape & Reel
Type Linear
Internal Switch(s) Yes
Number of Outputs 3
Voltage - Supply (Min) 5.5V
Voltage - Supply (Max) 40V
Voltage - Output 40V
Current - Output / Channel 60mA
Dimming PWM
Applications Automotive
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case 14-TSSOP (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package PG-TSDSO-14
Base Product Number TLD23313
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names SP001604396,TLD23313EPXUMA1-ND,TLD23313EPXUMA1DKR,TLD23313EPXUMA1CT,TLD23313EPXUMA1TR
Standard Package 3,000
Win Source Part Number 964759-TLD23313EPXUMA1
Ultra Librarian 3D Model Ultra Librarian TLD23313EPXUMA1 CAD Model

Description

The Infineon TLD23313EPXUMA1 is an IC used in LED drivers.

  • Manufacturer: Infineon
  • Outputs: It has 3 outputs
  • Package: 14-TSSOP (0.154", 3.90mm Width) Exposed Pad packaging.
  • Mounting Type: The TLD23313EPXUMA1 is designed for surface mount and is compliant with RoHS.
  • Voltage Output: 40V
  • Current Output/Channel: 60mA
  • Internal Switch: It is equipped with internal switch(s) and is dimmable using PWM.
  • Voltage Range: The voltage range for this component is 5.5V to 40V
  • Application: it is suitable for automotive applications.
  • Series: The TLD23313EPXUMA1 is part of the Automotive, AEC-Q100, LITIX™ series
  • Popularity: has a low popularity. in the open market and is facing a shortage in supply and demand status.
