Same model may have multiple batches, images only for reference.

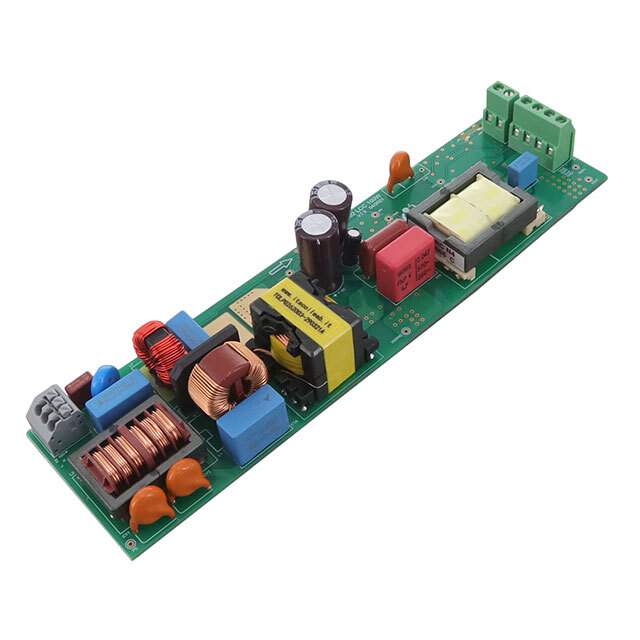

REFICL5102U100WLCCTOBO1 Real Image
Same model may have multiple batches, images only for reference.

REFICL5102U100WLCCTOBO1

Part No REFICL5102U100WLCCTOBO1
Manufacturer Infineon Technologies
Catalog Board Mount LED Drivers
Description EVAL BOARD FOR ICL5102 / ICL5102 1, Non-Isolated Outputs LED Driver Evaluation Board
Datasheet
REFICL5102U100WLCCTOBO1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation Boards - LED Drivers
Mfr Infineon Technologies
Package Bulk
Current - Output / Channel 1.82A
Outputs and Type 1, Non-Isolated
Voltage - Output 20V ~ 55V
Features Dimmable
Voltage - Input 90 ~ 267 VAC
Supplied Contents Board(s)
Utilized IC / Part ICL5102
Base Product Number ICL5102
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.9860
Other Names SP005571100,448-REFICL5102U100WLCCTOBO1
Standard Package 1
Win Source Part Number 963341-REFICL5102U100WLCCTOBO1
Ultra Librarian 3D Model Ultra Librarian REFICL5102U100WLCCTOBO1 CAD Model

Description

The Infineon Technologies 963341-REFICL5102U100WLCCTOBO1 is an evaluation board for LED drivers. It is dimmable and has a voltage output of 20V to 55V. The voltage input is 90 to 267 VAC, and the current output per channel is 1.82A. It has no alternative parts.
