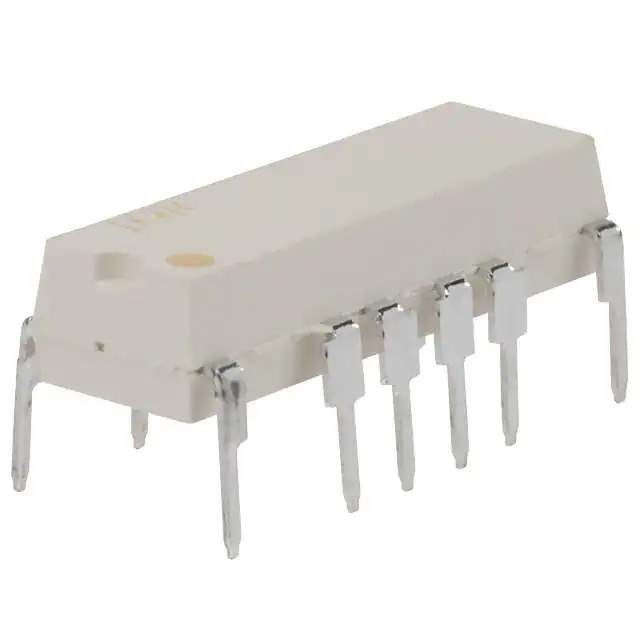

PVR2300NPBF Real Image
Same model may have multiple batches, images only for reference.

PVR2300NPBF

Part No PVR2300NPBF
Manufacturer Infineon Technologies
Catalog Solid State Relays
Description SSR RELAY DPST-NO 165MA 0-200V / Solid State DPST-NO (2 Form A) x 2 16-DIP (0.300", 7.62mm), 10 Leads
Datasheet
PVR2300NPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Infineon Technologies
Series PVR, HEXFET®
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Circuit DPST-NO (2 Form A) x 2
Output Type AC, DC
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 200 V
Load Current 165 mA
On-State Resistance (Max) 24 Ohms
Termination Style PC Pin
Package / Case 16-DIP (0.300", 7.62mm), 10 Leads
Supplier Device Package 16-DIP
Standard Package 25 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 890489-PVR2300NPBF
Ultra Librarian 3D Model Ultra Librarian PVR2300NPBF CAD Model

Description

The PVR2300NPBF is a solid state relay from Infineon Technologies. It is part of the PVR and HEXFET® series, designed for reliable switching in various applications.

  • Series: PVR and HEXFET®
  • Voltage Input: 1.2VDC
  • Output Types: AC and DC
  • Circuit Configuration: DPST-NO (2 Form A) x 2
  • On-State Resistance (Max): 24 Ohms
  • Mounting: Through-Hole
  • Package: 16-DIP
  • Leads: 10
  • Operating Temperature: -40°C to 175°C
  • Product Status: Obsolete
