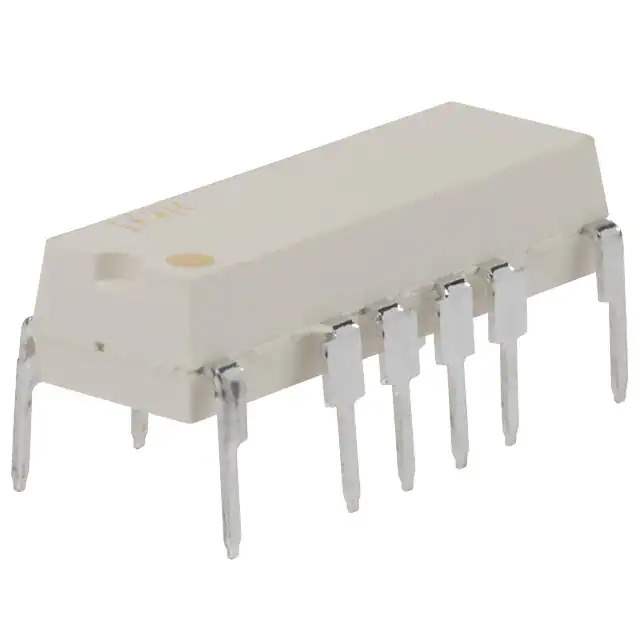

PVR1301 Real Image
Same model may have multiple batches, images only for reference.

PVR1301

Part No PVR1301
Manufacturer Infineon Technologies
Catalog Solid State Relays
Description SSR RELAY DPST-NO 400MA 0-100V / Solid State DPST-NO (2 Form A) x 2 16-DIP (0.300", 7.62mm), 10 Leads
Datasheet
PVR1301 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Infineon Technologies
Series PVR, BOSFET®
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Circuit DPST-NO (2 Form A) x 2
Output Type AC, DC
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 100 V
Load Current 400 mA
On-State Resistance (Max) 5 Ohms
Termination Style PC Pin
Package / Case 16-DIP (0.300", 7.62mm), 10 Leads
Supplier Device Package 16-DIP
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 658208-PVR1301
Ultra Librarian 3D Model Ultra Librarian PVR1301 CAD Model

Description

The PVR1301 is a solid-state relay from Infineon Technologies.

  • Manufacturer: Infineon Technologies
  • Series: PVR
  • Technology: BOSFET
  • Termination Style: PC pin
  • Package: Tube
  • Standard Package: 25 pieces
  • Input Voltage: 1.2VDC
  • Output Type: AC or DC
  • Circuit Configuration: DPST-NO (2 Form A) x 2
  • On-State Resistance: 5 Ohms (max)
  • Load Current: 400 mA
  • Load Voltage Range: 0V to 100V
  • Mounting: Through-hole
  • Package: 16-DIP (10 leads)
  • Status: Obsolete
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS Code: 8536.41.0030
