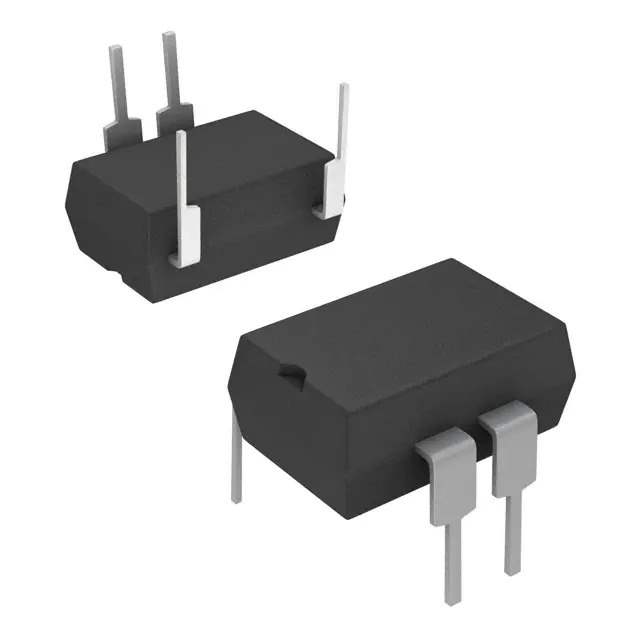

PVD1354NPBF Real Image
Same model may have multiple batches, images only for reference.

PVD1354NPBF

Part No PVD1354NPBF
Manufacturer Infineon Technologies
Catalog Solid State Relays
Description SSR RELAY SPST-NO 550MA 0-100V / Solid State SPST-NO (1 Form A) 8-DIP (0.300", 7.62mm), 4 Leads
Datasheet
PVD1354NPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Infineon Technologies
Series PVD, HEXFET®
Package Tube
Product Status Active
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type DC
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 100 V
Load Current 550 mA
On-State Resistance (Max) 1.5 Ohms
Termination Style PC Pin
Package / Case 8-DIP (0.300", 7.62mm), 4 Leads
Supplier Device Package 8-DIP Modified
Base Product Number PVD1354
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 658159-PVD1354NPBF
Ultra Librarian 3D Model Ultra Librarian PVD1354NPBF CAD Model

Description

The PVD1354NPBF is a solid state relay from Infineon Technologies. It belongs to the PVD series and features the HEXFET technology.

  • Termination Style: PC pin
  • Package: tube package
  • Standard Package: 50 pieces
  • Voltage Input: 1.2VDC
  • Output Type: DC
  • Circuit Configuration: SPST-NO (1 Form A)
  • Maximum On-State Resistance: 1.5 Ohms
  • Load Current: 550 mA
  • Voltage Load Range: 0 V to 100 V
  • Mounting Type: through-hole
  • Package: 8-DIP package with 4 leads
  • Product Status: active product
  • REACH: unaffected
