Same model may have multiple batches, images only for reference.

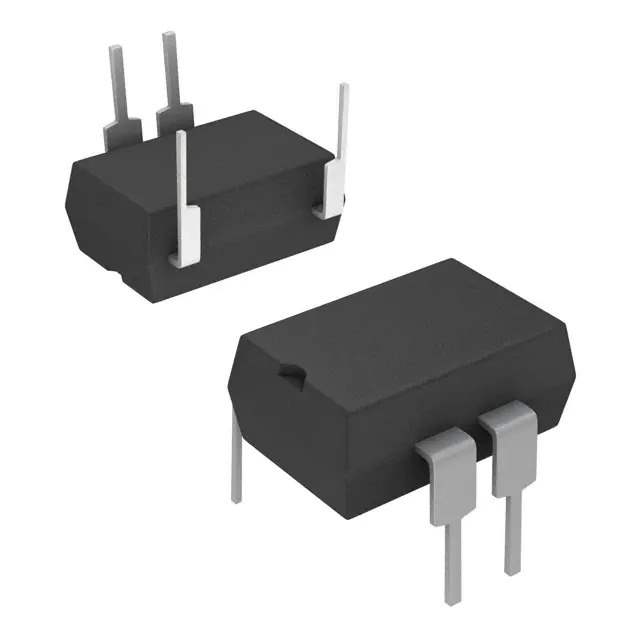

PVD1352 Real Image
Same model may have multiple batches, images only for reference.

PVD1352

Part No PVD1352
Manufacturer Infineon Technologies
Catalog Solid State Relays
Description SSR RELAY SPST-NO 500MA 0-100V / Solid State SPST-NO (1 Form A) 8-DIP (0.300", 7.62mm), 4 Leads
Datasheet
PVD1352 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Infineon Technologies
Series PVD, BOSFET®
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type DC
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 100 V
Load Current 500 mA
On-State Resistance (Max) 1.5 Ohms
Termination Style PC Pin
Package / Case 8-DIP (0.300", 7.62mm), 4 Leads
Supplier Device Package 8-DIP Modified
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 658154-PVD1352
Ultra Librarian 3D Model Ultra Librarian PVD1352 CAD Model

Description

The PVD1352 is a solid-state relay from Infineon Technologies.

  • Series: PVD, BOSFET series
  • Load Switching: DC loads
  • Circuit Configuration: SPST-NO (1 Form A)
  • On-State Resistance: 1.5 Ohms
  • Load Current Rating: 500mA
  • Voltage Load Range: 0V to 100V
  • Mounting: through-hole mountable
  • Package: 8-DIP package
  • Termination Style: PC pin
  • Applications: industrial and automotive applications where precise and efficient DC load switching is required.
