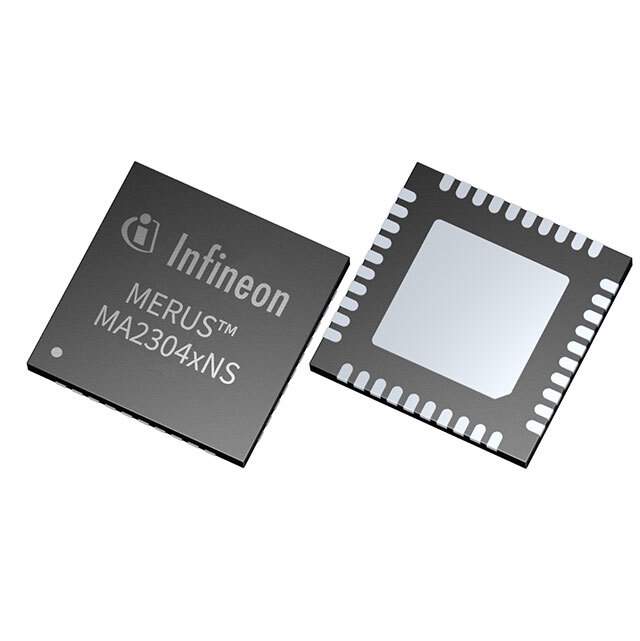

MA2304PNSXUMA1 Real Image
Same model may have multiple batches, images only for reference.

MA2304PNSXUMA1

Part No MA2304PNSXUMA1
Manufacturer Infineon Technologies
Catalog Linear - Amplifiers - Audio
Description THE MA2304PNS IS A 2X37 W AUDIO / Amplifier IC 2-Channel (Stereo) Class D PG-VQFN-40
Datasheet
MA2304PNSXUMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Linear - Amplifiers - Audio Amplifiers
Mfr Infineon Technologies
Package Tape & Reel
Type Class D
Output Type 2-Channel (Stereo)
Max Output Power x Channels @ Load 74W x 1 @ 2Ohm; 37W x 2 @ 4Ohm
Voltage - Supply 10V ~ 20V
Mounting Type Surface Mount
Temperature Range - Operating -25°C ~ 85°C (TA)
Supplier Device Package PG-VQFN-40
Package / Case 40-VFQFN Exposed Pad
Standard Package 4,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Win Source Part Number 1339193-MA2304PNSXUMA1
Ultra Librarian 3D Model Ultra Librarian MA2304PNSXUMA1 CAD Model

Description

The MA2304PNSXUMA1 is a class D audio amplifier from Infineon Technologies.

  • Output Type: 2-Channel
  • Maximum Output Power: 74W x 1 @ 2Ohm; 37W x 2 @ 4Ohm
  • Voltage Supply Range: 10V to 20V
  • Package: 40-VFQFN exposed pad
  • Applications: Suitable for home theater systems, car audio systems, and portable speakers.
