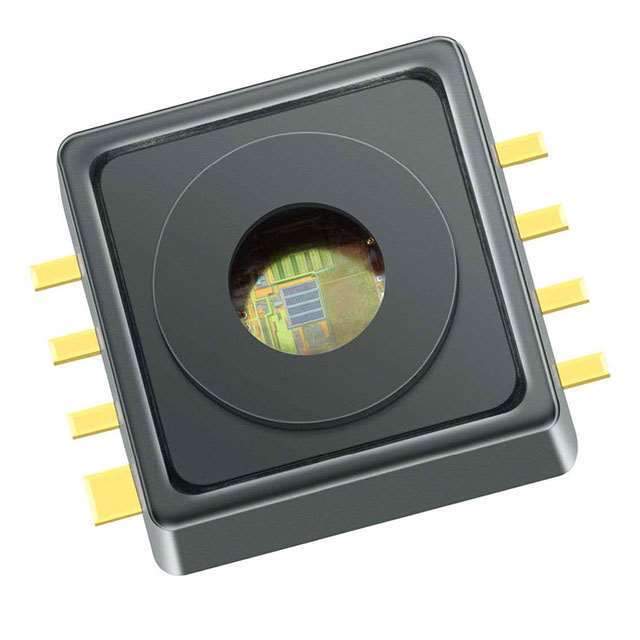

KP236N6165XTMA1

Part No KP236N6165XTMA1
Manufacturer Infineon Technologies
Catalog Pressure Sensors, Transducers
Description IC ANLG BAROMETRIC SNSR DSOF8-16 / Board Mount Pressure Sensor 0.1V to 4.85V 60kPa to 165kPa Absolute Automotive 8-Pin DSOF T/R
Datasheet
KP236N6165XTMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Infineon Technologies
Series Automotive, AEC-Q100
Pressure Type Absolute
Operating Pressure 8.7 PSI ~ 23.93 PSI (60 kPa ~ 165 kPa)
Output Type Analog Voltage
Output 0.1 V ~ 4.85 V
Accuracy ±0.29 PSI (±2 kPa)
Operating Supply Voltage 4.5 V ~ 5.5 V
Port Style No Port
Features Amplified Output, Temperature Compensated
Termination Style Solder Pad
Operating Temperature Range -40°C ~ 125°C
Package 8-SMD Module
Manufacturer Package Module
Win Source Part Number 778015-KP236N6165XTMA1
Popularity Medium
Supply and Demand Status Balance
Family Name KP236N6165
Introduction Date June 21, 2010
ECCN EAR99
Country of Origin Germany , Malaysia
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian KP236N6165XTMA1 CAD Model

Description

The Infineon Technologies KP236N6165XTMA1 is an automotive AEC-Q100 pressure sensor module with a termination style of solder pad.

  • Termination Style: Solder pad
  • Operating Temperature Range: -40°C to 125°C
  • Accuracy: ±0.29 PSI (±2 kPa)
  • Pressure Type: Absolute
  • Operating Pressure Range: 8.7 PSI to 23.93 PSI (60 kPa to 165 kPa)
  • Output Type: Analog voltage
  • Output Range: 0.1V to 4.85V
  • Package: 8-SMD
  • Halogen Free: Compliant
