Same model may have multiple batches, images only for reference.

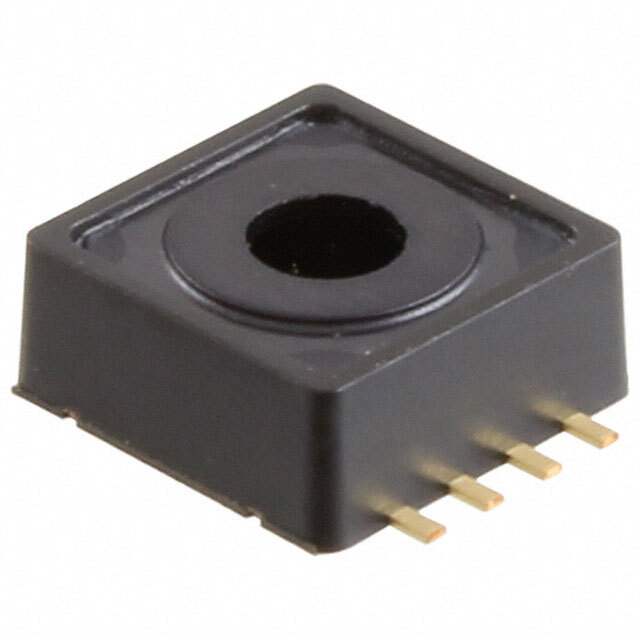

KP235XTMA1 Real Image
Same model may have multiple batches, images only for reference.

KP235XTMA1

Part No KP235XTMA1
Manufacturer Infineon Technologies
Catalog Pressure Sensors, Transducers
Description IC ANLG BAROMETRIC SNSR DSOF8-16
Datasheet
KP235XTMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Infineon Technologies
Status Active
Pressure Type Absolute
Operating Pressure 5.8 PSI to 16.68 PSI (40 kPa to 115 kPa)
Output Type Analog Voltage
Output 0.5 V to 4.5 V
Accuracy ±0.348 PSI (±2.4 kPa)
Supply Voltage - Operating 4.5 V to 5.5 V
Port Style No Port
Features Amplified Output, Temperature Compensated
Termination Style Surface Mount
Maximum Pressure 21.76 PSI (150 kPa)
Temperature Range - Operating -40°C to 125°C
Win Source Part Number 130606-KP235XTMA1
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian KP235XTMA1 CAD Model

Description

The KP235XTMA1 is an absolute pressure sensor manufactured by Infineon Technologies.

  • Popularity: Medium
  • Output Type: Analog Voltage
  • Accuracy: ±0.348 PSI

This device is ideal for use in applications where an absolute pressure sensor is required.
