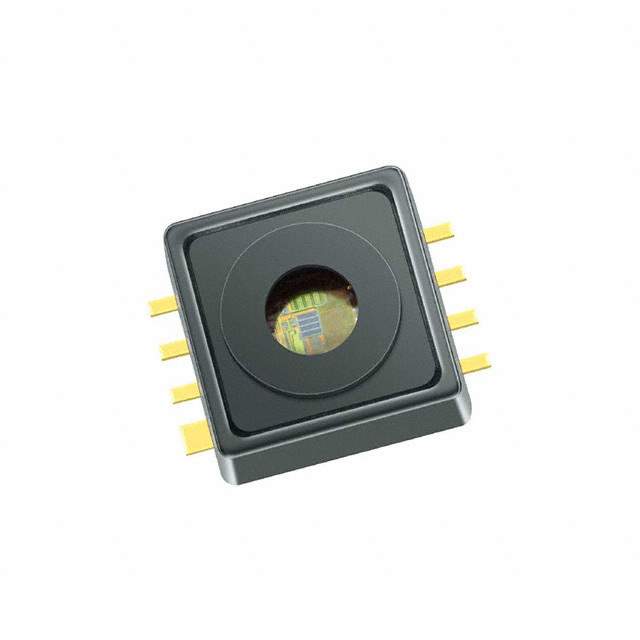

KP229E2701XTMA1 Real Image
Same model may have multiple batches, images only for reference.

KP229E2701XTMA1

Part No KP229E2701XTMA1
Manufacturer Infineon Technologies
Catalog Pressure Sensors, Transducers
Description IC ANLG ABSOLUTE PRES SNSR DSOF8 / Board Mount Pressure Sensor 0.1V to 4.85V 10kPa to 300kPa Absolute Automotive 8-Pin DSOF T/R
Datasheet
KP229E2701XTMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Infineon Technologies
Pressure Type Absolute
Operating Pressure 1.45 PSI ~ 43.51 PSI (10 kPa ~ 300 kPa)
Output Type Analog Voltage
Output 0.4 V ~ 4.65 V
Accuracy ±0.544 PSI (±3.75 kPa)
Operating Supply Voltage 4.5 V ~ 5.5 V
Port Style No Port
Features Amplified Output, Temperature Compensated
Termination Style Surface Mount
Operating Temperature Range -40°C ~ 140°C
Package 8-SMD Module
Win Source Part Number 778014-KP229E2701XTMA1
Popularity Medium
Supply and Demand Status Limited
Family Name KP229E2701
Introduction Date September 01, 2010
ECCN EAR99
Country of Origin Germany
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian KP229E2701XTMA1 CAD Model

Description

The Infineon Technologies KP229E2701XTMA1 is an absolute pressure sensor with amplified output and temperature compensation.

  • Termination Style: Surface mount
  • Operating Temperature Range: -40°C to 140°C
  • Output Type: Analog voltage
  • Operating Supply Voltage: 4.5V to 5.5V
  • Output Range: 0.4V to 4.65V
  • Accuracy: ±0.544 PSI (±3.75 kPa)
  • Pressure Type: Absolute
  • Operating Pressure Range: 1.45 PSI to 43.51 PSI (10 kPa to 300 kPa)
  • Port Style: None
  • Package: 8-SMD
