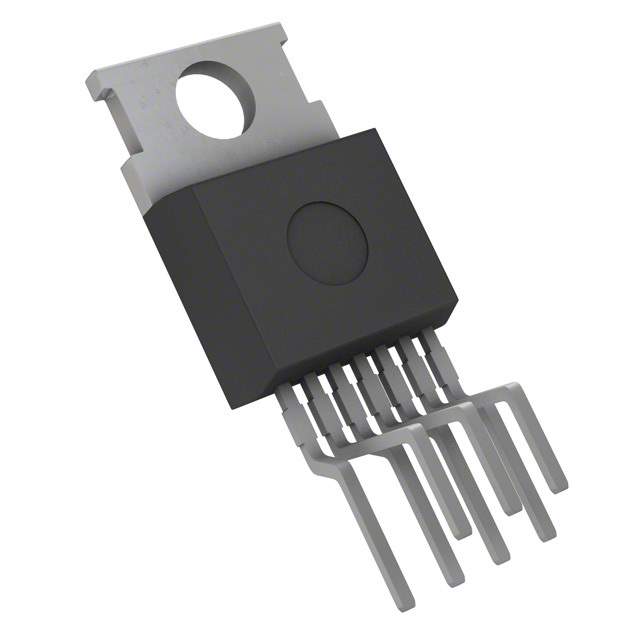

The ITS612N1HKSA1 is a single-channel high-side power switch from Infineon Technologies, belonging to their PROFET+2 family. This intelligent power switch is designed to drive a variety of loads in automotive applications, offering robust protection and diagnostic features. It is commonly used for switching resistive, inductive, and capacitive loads.

Applications

• Automotive lighting: Controls headlights, taillights, fog lights, and other lighting systems in vehicles.
• Relay replacement: Can be used to replace electromechanical relays, offering higher reliability and longer lifespan.
• Power distribution: Provides controlled power distribution in automotive electronic systems.
• Solenoid control: Drives solenoids for various automotive applications, such as valve control and locking mechanisms.
• Actuator control: Controls small DC motors and actuators within the vehicle.

Features

• High-side switch: Connects the load to the positive supply, simplifying wiring and reducing ground loops.
• Low on-resistance (RDS(on)): Minimizes power dissipation and improves efficiency.
• Overload protection: Protects the switch and load from excessive current draw.
• Short-circuit protection: Provides protection against short circuits to ground or supply voltage.
• Overtemperature protection: Shuts down the switch when the temperature exceeds the safe operating limit.
• Undervoltage lockout: Prevents the switch from operating when the supply voltage is too low.
• Diagnostic feedback: Provides status information about the load, including overcurrent, overtemperature, and short-circuit conditions.
• Logic level input: Compatible with standard microcontroller logic levels (e.g., 3.3V or 5V).
• Enhanced EMC performance: Designed to meet stringent automotive EMC requirements.

Benefits

• Improved reliability: Robust protection features ensure reliable operation in harsh automotive environments.
• Increased efficiency: Low on-resistance reduces power losses and improves fuel economy.
• Simplified system design: Integrated protection and diagnostic functions reduce the need for external components.
• Enhanced safety: Diagnostic feedback enables early detection of fault conditions, preventing potential damage.
• Longer lifespan: Replacing relays with solid-state switches increases system longevity.

The ITS612N1HKSA1 is typically packaged in a PG-DSO-8. Its robust design, comprehensive protection features, and diagnostic capabilities make it a reliable and efficient solution for automotive power switching applications.
