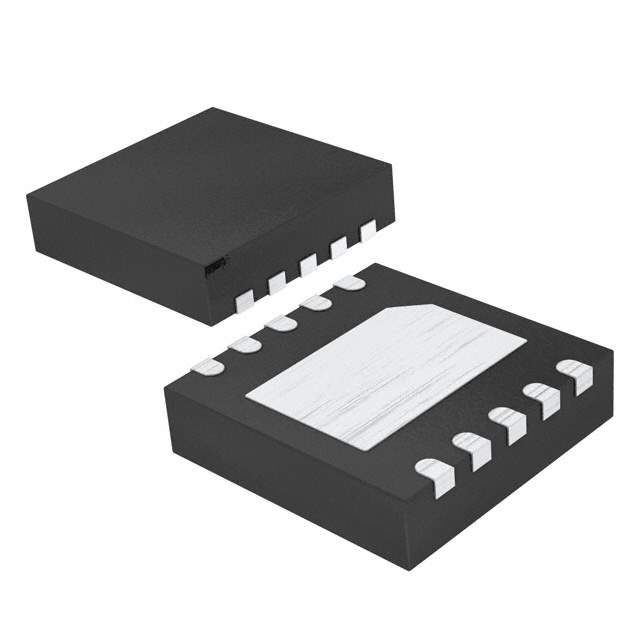

The ITS42K5DLDF is a single channel high-side power switch manufactured by Infineon Technologies. It is designed to drive various loads in automotive and industrial applications. It provides protection features and diagnostic capabilities to ensure reliable operation.

Applications:

• Automotive Lighting: Used to control headlights, taillights, and other vehicle lighting systems.
• Automotive Body Control Modules: Used in body control modules for switching various loads.
• Industrial Automation: Employed in industrial automation systems for controlling motors, valves, and other actuators.
• Power Distribution: Suitable for power distribution applications requiring high-side switching.

Features:

• High-Side Switch: Functions as a high-side switch, simplifying wiring and reducing component count.
• Overload Protection: Includes overload protection to prevent damage from excessive current.
• Short-Circuit Protection: Provides short-circuit protection to protect the device and the load.
• Over-Temperature Protection: Incorporates over-temperature protection to prevent thermal damage.
• Diagnostic Feedback: Offers diagnostic feedback signals for monitoring device status.

Benefits:

• Enhanced System Reliability: Integrated protection features enhance the reliability of the overall system.
• Simplified Design: High-side switching simplifies wiring and reduces the need for external components.
• Improved Safety: Protection against overload, short-circuit, and over-temperature ensures safe operation.
• Diagnostic Capabilities: Diagnostic feedback enables easy monitoring and troubleshooting of the system.

Technical Specifications:

The ITS42K5DLDF typically features an operating voltage range of 5V to 34V, a maximum current rating of around 2.5A to 4A (depending on package and temperature), and various protection thresholds. The device also provides diagnostic outputs for indicating fault conditions. Detailed specifications can be found in the manufacturer's datasheet.
