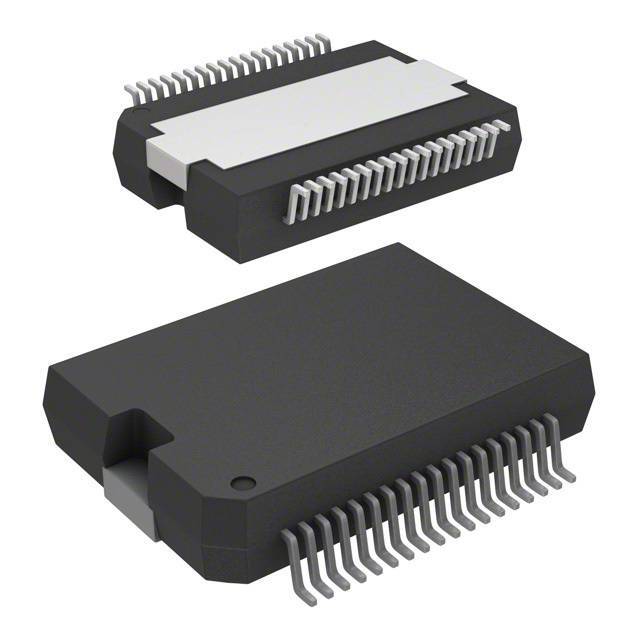

ISO1H815G Infineon Technologies
Same model may have multiple batches, images only for reference.

ISO1H815G

Part No ISO1H815G
Manufacturer Infineon Technologies
Catalog PMIC - Power Distribution Switches, Load Drivers
Description Coreless Transformer Isolated Digital Output 8 Channel 1.2A High-Side Switch
Datasheet
ISO1H815G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Infineon Technologies
Series ISOFACE
Packaging Reel - TR
Switch Type Relay, Solenoid Driver
Number of Outputs 8
Output Configuration High Side
Output Type N-Channel
Interface Parallel
Voltage - Load 11 V ~ 35 V
Supply Voltage 3 V ~ 5.5 V
Current - Output (Maximum) 625mA
Rds On (Typ) 150 mOhm
Features Auto Restart, Galvanic Isolation, Status Flag
Fault Protection Current Limiting (Fixed), Over Temperature, Over Voltage
Operating Temperature Range -25°C ~ 125°C (TJ)
Package 36-BSSOP (0.433", 11.00mm Width) Exposed Pad
Manufacturer Package PG-DSO-36
Win Source Part Number 1190602-ISO1H815G
Manufacturer Homepage www.infineon.com
Popularity Medium
Supply and Demand Status Limited
Family Name ISO1H815G
Introduction Date October 15, 1999
ECCN EAR99
Country of Origin Indonesia
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian ISO1H815G CAD Model

Description

The Infineon Technologies ISO1H815G is a galvanic isolation integrated circuit that is part of the ISOFACE series.

  • Interface: Parallel
  • Compatibility: Relay and Solenoid Drivers
  • Package: 36-BSSOP (0.433", 11.00mm Width) Exposed Pad
  • Output Configuration: High Side
  • Voltage Load: 11V ~ 35V
  • Current Output (Maximum): 625mA
  • Typical Rds On: 150 mOhm
  • Status: Obsolete
  • Supply: Limited
  • Popularity: Medium
