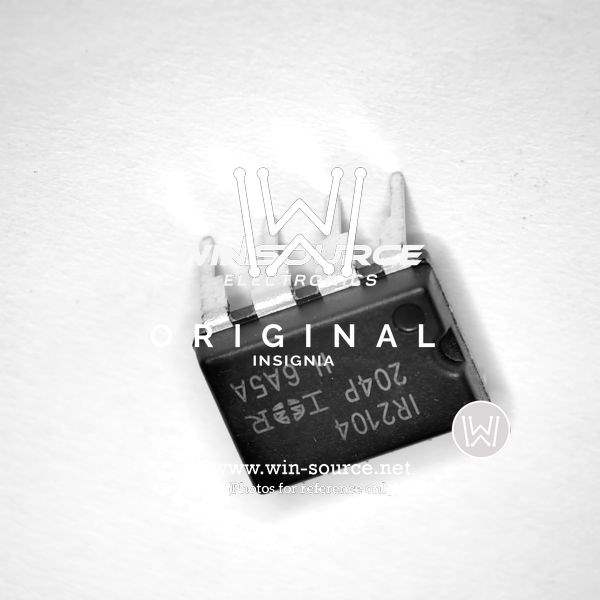

IRS2104PBF Real Image IRS2104PBF Real Image1 IRS2104PBF Real Image2
Same model may have multiple batches, images only for reference.
IRS2104PBF Real Image IRS2104PBF Real Image1 IRS2104PBF Real Image2
IRS2104PBF Real Image IRS2104PBF Real Image1 IRS2104PBF Real Image2
Same model may have multiple batches, images only for reference.

IRS2104PBF

Part No IRS2104PBF
Manufacturer Infineon Technologies
Catalog PMIC - Gate Drivers
Description IC DRIVER HALF-BRIDGE 8-DIP
Datasheet
IRS2104PBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Infineon Technologies
Packaging Tube/Rail
Status Active
Driven Configuration Half-Bridge
Channel Type Synchronous
Number of Drivers 2
Gate Type IGBT, N-Channel MOSFET
Supply Voltage - Operating 10 V to 20 V
Logic Voltage - VIL, VIH 0.8V, 2.5V
Current - Peak Output (Source, Sink) 290mA, 600mA
Input Type Non-Inverting
High Side Voltage - Max (Bootstrap) 600V
Rise and Fall Time 70ns, 35ns
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting Through Hole
Case / Package 8-DIP
Win Source Part Number 1047735-IRS2104PBF
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Power Management
Ultra Librarian 3D Model Ultra Librarian IRS2104PBF CAD Model

Description

The Infineon Technologies IRS2104PBF is an integrated circuit that belongs to the category of electronic components.

  • Mounting Type: through-hole
  • Package: 8-DIP
  • Input Type: non-inverting
  • Driven Configuration: half-bridge
  • Number of Drivers: 2
  • Compatible Gate Types: IGBT and N-Channel MOSFET
  • Maximum High Side Voltage: 600V
  • Peak Output Current (source, sink): 290mA, 600mA
