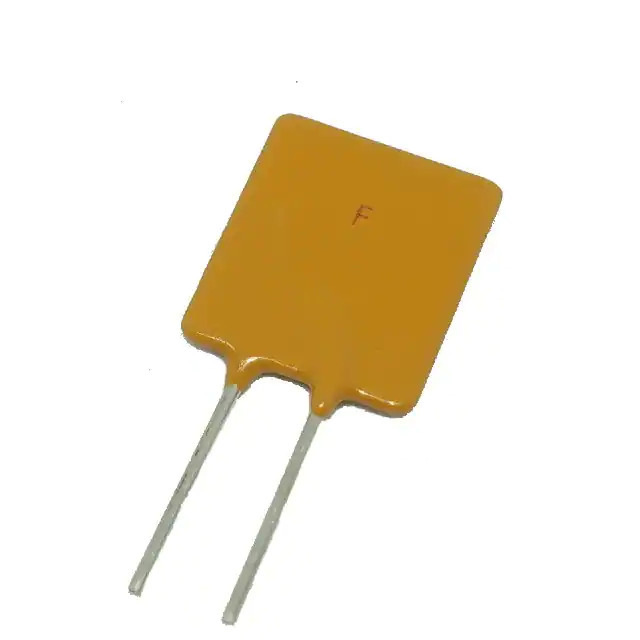

FRU500-30F RFE/Fuzetec
Same model may have multiple batches, images only for reference.

FRU500-30F

Part No FRU500-30F
Manufacturer RFE/Fuzetec
Catalog PTC Resettable Fuses
Description RESETTABLE FUSE - PPTC RADIAL LE / PTC Resettable Fuse 30V 5 A Ih Through Hole Radial, Disc
Datasheet
FRU500-30F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr RFE/Fuzetec
Series FRU
Package Bulk
Product Status Active
Type -
Voltage - Max 30V
Current - Hold (Ih) (Max) 5 A
Current - Trip (It) 10 A
Current - Max 100 A
Time to Trip 14.5 s
Resistance - Initial (Ri) (Min) 10 mOhms
Resistance - Post Trip (R1) (Max) 50 mOhms
Temperature Range - Operating -40°C ~ 85°C
Ratings -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.551" L x 0.118" W (14.00mm x 3.00mm)
Height - Seated (Max) 0.980" (24.90mm)
Thickness (Max) -
Lead Spacing 0.402" (10.20mm)
Approval Agency cUL, TUV, UL
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1361797-FRU500-30F
Ultra Librarian 3D Model Ultra Librarian FRU500-30F CAD Model

Description

The FRU500-30F is a PTC resettable fuse from RFE/Fuzetec.

  • Type: Radial, disc
  • Mounting Type: Through-hole
  • Maximum Current Rating: 100A
  • Maximum Voltage Rating: 30V
  • Current Hold (Ih): 5A
  • Current Trip (It): 10A
  • Time to Trip: 14.5 seconds
  • Initial Resistance (Ri): 10 mOhms
  • Post Trip Resistance (R1): 50 mOhms
  • Approvals: cUL, TUV, and UL
