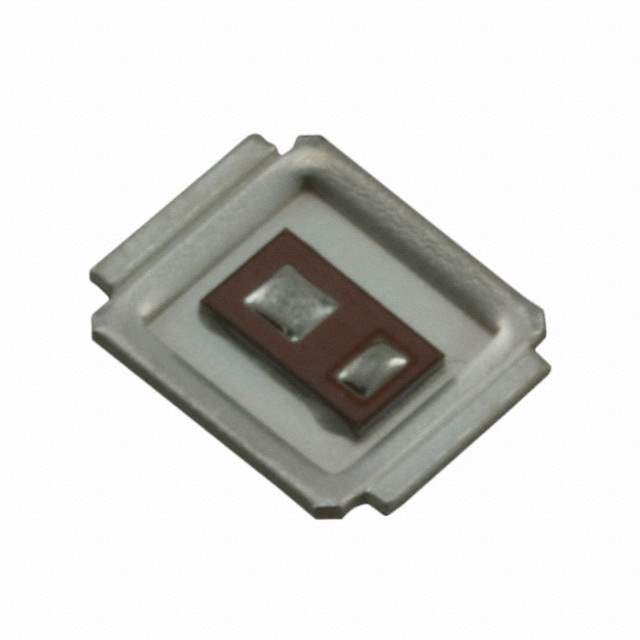

Same model may have multiple batches, images only for reference.

IRF6610TRPBF

Name: IRF6610TRPBF
Brand: Infineon Technologies
SKU: 753728
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	IRF6610TRPBF
Manufacturer	Infineon Technologies
Catalog	FETs - Single
Description	MOSFET N-CH 20V 15A DIRECTFET
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Infineon Technologies
Packaging	Reel
Status	Obsolete
Transistor Polarity	N-Channel
Technology	MOSFET
Vds - Drain-Source Breakdown Voltage	20V
Id - Continuous Drain Current	15A, 66A
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Maximum) at Id, Vgs	6.8mOhm at 15A, 10V
Gate Source Voltage(th) (Maximum) at Id	2.55V at 250μA
Gate Charge (Qg) (Maximum) at Vgs	17nC at 4.5V
Gate Source Voltage (Maximum)	±20V
Input Capacitance (Ciss) (Maximum) at Vds	1520pF at 10V
Power Dissipation (Maximum)	2.2W, 42W
Temperature Range - Operating	-40°C ~ 150°C
Mounting Style	SMD
Supplier Device Package	DIRECTFET SQ
Manufacturer Package	DirectFET Isometric SQ
Manufacturer Pack Quantity	1
MSL Level	3 (168 Hours)
Win Source Part Number	753728-IRF6610TRPBF
Popularity	Low
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian IRF6610TRPBF CAD Model

Alternative Products

Description

The Infineon Technologies 753728-IRF6610TRPBF is an obsolete electronic component.

Popularity: low
Supply and Demand Status: balanced
Technology: MOSFET
Transistor Polarity: N-Channel
Mounting Technology: SMD
Supplier Device Package: DIRECTFET SQ
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Gate Source Voltage (Maximum): ±20V
Input Capacitance (Ciss) (Maximum) @ Vds: 1520pF @ 10V
Maximum Power Dissipation: 2.2W, 42W
Manufacturer Package: DirectFET Isometric SQ
Product Status: obsolete
