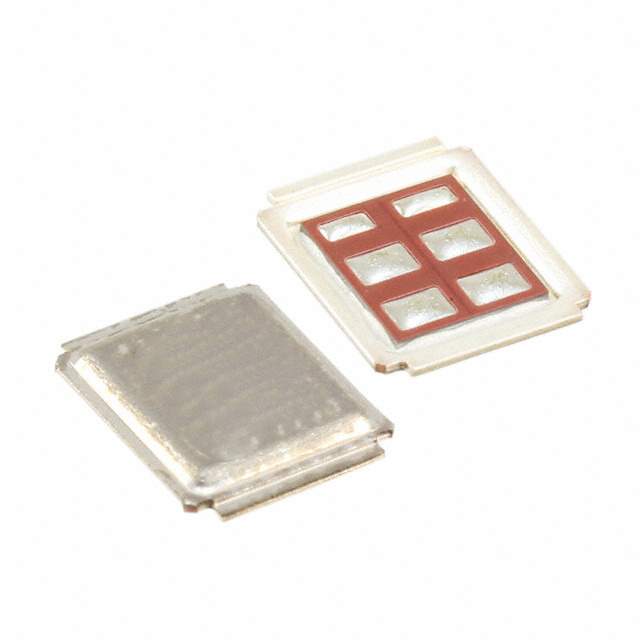

Same model may have multiple batches, images only for reference.

IRF60DM206

Name: IRF60DM206
Brand: Infineon Technologies
SKU: 805474
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IRF60DM206
Manufacturer	Infineon Technologies
Catalog	FETs - Single
Description	MOSFET N-CH 60V 130A / Brushed motor drive applications
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Infineon Technologies
Packaging	Reel
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) at 25°C	130A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Maximum) at Id, Vgs	2.9mOhm at 80A, 10V
Vgs(th) (Maximum) at Id	3.7V at 150μA
Gate Charge (Qg) (Maximum) at Vgs	200nC at 10V
Maximum Vgs	±20V
Input Capacitance (Ciss) (Maximum) at Vds	6530pF at 25V
Power Dissipation (Maximum)	96W (Tc)
Temperature Range - Operating	-55°C ~ 150°C
Mounting Style	SMD
Supplier Device Package	DirectFET Isometric ME
Manufacturer Package	DirectFET Isometric ME
Manufacturer Pack Quantity	4,800
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Balance
Win Source Part Number	805474-IRF60DM206
Ultra Librarian 3D Model	Ultra Librarian IRF60DM206 CAD Model

Description

The Infineon Technologies IRF60DM206 is an N-Channel MOSFET designed for use in a variety of applications such as power supplies, motor control, and lighting.

Drain-to-source voltage: 60V
Maximum power dissipation: 96W
On-resistance: 2.9mOhm @ 80A, 10V
Gate charge: 200nC @ 10V
Input capacitance: 6530pF @ 25V
Continuous drain current: 130A @ 25°C
Maximum gate-source voltage: ±20V
Package: DirectFET Isometric ME
Temperature range: -55°C to 150°C
