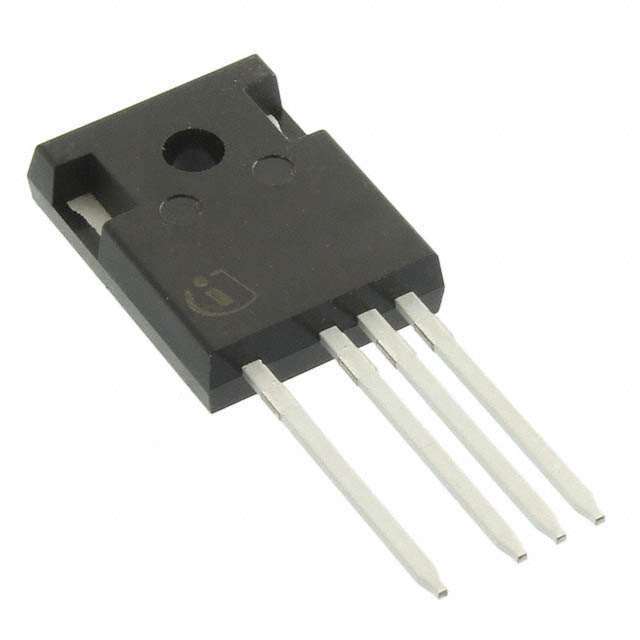

The IKY40N120CH3XKSA1 is a 1200V, 40A discrete IGBT (Insulated Gate Bipolar Transistor) from Infineon Technologies. This IGBT is designed for high-speed switching applications with low switching losses. The device is typically used in applications requiring high voltage and current handling capabilities.

Applications:

• Solar Inverters: Used in the DC-AC conversion stage of solar power inverters.
• Uninterruptible Power Supplies (UPS): Employed in UPS systems for power conditioning and backup power generation.
• Welding Machines: Implemented in inverter-based welding equipment for efficient power conversion.
• Induction Heating: Suitable for induction heating applications.
• Motor Drives: Used in high power motor control circuits for industrial applications.

Features:

• 1200V Blocking Voltage: Suitable for high voltage applications.
• 40A Continuous Collector Current: Handles high current loads.
• Low VCE(sat): Minimizes conduction losses.
• High Switching Speed: Enables efficient high-frequency operation.
• TRENCHSTOP™ Technology: Provides improved performance and robustness.
• Integrated Gate Resistor: Simplifies gate drive design.
• RoHS Compliant: Meets environmental regulations.

Benefits:

• High Efficiency: Low VCE(sat) and fast switching speed minimize power losses.
• Robustness: TRENCHSTOP™ technology provides improved robustness and reliability.
• Simplified Design: Integrated gate resistor simplifies gate drive design.
• Improved Performance: High voltage and current handling capabilities enable high-power applications.
• Environmentally Friendly: RoHS compliant, meeting environmental regulations.

Additional Details:

The IKY40N120CH3XKSA1 is typically packaged in a TO-247 package for efficient heat dissipation. The gate-emitter voltage (VGE) is typically rated at ±20V. The device exhibits a typical turn-on delay time of 15 ns and a turn-off delay time of 50 ns (depending on the test conditions). The operating junction temperature range is typically -40°C to +175°C. The device's characteristics are optimized for both hard switching and resonant switching topologies. The input capacitance is relatively low, contributing to improved switching performance.
