Same model may have multiple batches, images only for reference.

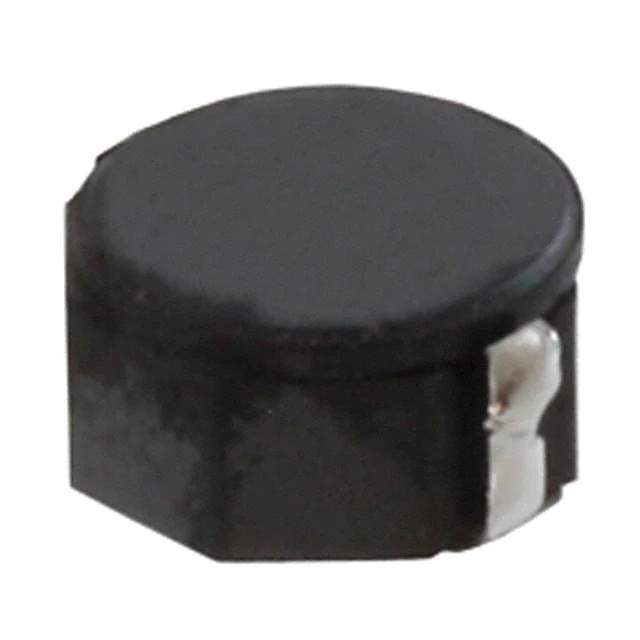

CDRH8D43NP-220NC Real Image
Same model may have multiple batches, images only for reference.

CDRH8D43NP-220NC

Part No CDRH8D43NP-220NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 22UH 1.8A 75 MOHM SMD
Datasheet
CDRH8D43NP-220NC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Sumida America Components Inc.
Series CDRH8D43
Package Tape & Reel
Product Status Active
Material - Core Ferrite
Inductance 22 µH
Tolerance ±30%
Current Rating (Amps) 1.8 A
Current - Saturation (Isat) 2.6A
Shielding Shielded
DC Resistance (DCR) 75mOhm Max
Temperature Range - Operating -40°C ~ 100°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max) 0.177" (4.50mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 578212-CDRH8D43NP-220NC
Ultra Librarian 3D Model Ultra Librarian CDRH8D43NP-220NC CAD Model

Description

The CDRH8D43NP-220NC is a shielded fixed inductor manufactured by Sumida America Components Inc.

  • Series: CDRH8D43
  • Size: 0.315" L x 0.315" W (8.00mm x 8.00mm)
  • Inductance: 22 μH
  • Maximum Seated Height: 0.177" (4.50mm)
  • Tolerance: ±30%
  • DC Resistance (DCR): 75mOhm max
  • Operating Temperature Range: -40°C to 100°C
  • Mounting: Surface Mount
  • Package: Nonstandard
  • Current Rating: 1.8 A
  • Current Saturation (Isat): 2.6A
  • Commonly Used In: Power supplies, automotive electronics, and communication equipment
