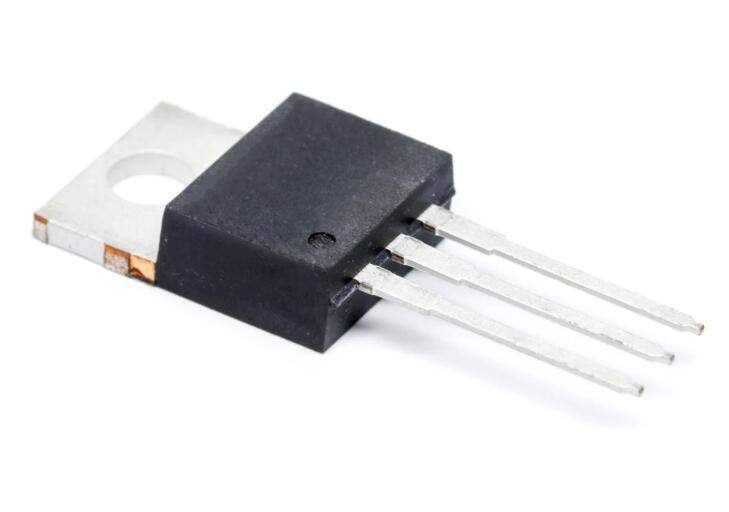

Same model may have multiple batches, images only for reference.
IKP20N65H5 Infineon Technologies
Same model may have multiple batches, images only for reference.

IKP20N65H5

Part No IKP20N65H5
Manufacturer Infineon Technologies
Catalog IGBTs - Single
Description IGBTs IGBT PRODUCTS TrenchStop 5
Datasheet
IKP20N65H5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Infineon
Category IGBTs
Technology Si
Package / Case TO-220-3
Mounting Style Through Hole
Configuration Single
Collector- Emitter Voltage VCEO Max 650 V
Collector-Emitter Saturation Voltage 1.65 V
Pd - Power Dissipation 125 W
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 175 C
Series TRENCHSTOP 5 H5
Ultra Librarian 3D Model Ultra Librarian IKP20N65H5 CAD Model

Description

IGBTs IGBT PRODUCTS TrenchStop 5
