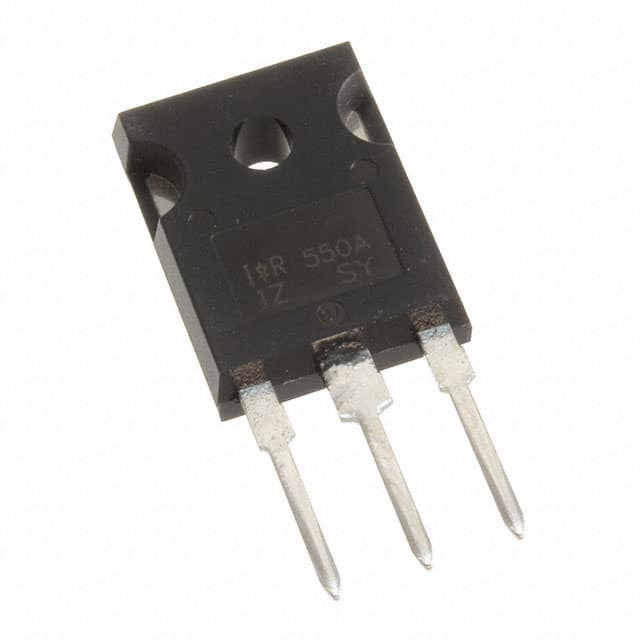

Same model may have multiple batches, images only for reference.

IGW100N60H3FKSA1

Name: IGW100N60H3FKSA1
Brand: Infineon Technologies
SKU: 1204076
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	IGW100N60H3FKSA1
Manufacturer	Infineon Technologies
Catalog	IGBTs - Single
Description	IGBT 600V 140A TO247-3 / IGBT Trench Field Stop 600 V 140 A 714 W Through Hole PG-TO247-3
Datasheet	IGW100N60H3FKSA1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - IGBTs - Single
Mfr	Infineon Technologies
Series	TrenchStop™
Package	Tube
IGBT Type	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)	600 V
Current - Collector (Ic) (Max)	140 A
Current - Collector Pulsed (Icm)	300 A
Vce(on) (Max) @ Vge, Ic	2.3V @ 15V, 100A
Power - Max	714 W
Switching Energy	3.7mJ (on), 1.9mJ (off)
Input Type	Standard
Gate Charge	625 nC
Td (on/off) @ 25°C	30ns/265ns
Test Condition	400V, 100A, 3.5Ohm, 15V
Temperature Range - Operating	-40°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-247-3
Supplier Device Package	PG-TO247-3
Base Product Number	IGW100
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	SP000913772
Standard Package	30
Win Source Part Number	1204076-IGW100N60H3FKSA1
Ultra Librarian 3D Model	Ultra Librarian IGW100N60H3FKSA1 CAD Model

Description

The Infineon Technologies IGW100N60H3FKSA1 is a discrete semiconductor product - transistor - IGBTs - Single electronic component with a maximum power of 714 W.

Transistor Type: Trench Field Stop IGBT
Voltage - Collector Emitter Breakdown (Max): 600 V
Switching Energy: 3.7mJ (on), 1.9mJ (off)
Gate Charge: 625 nC
Temperature Range: -40°C to 175°C (TJ)
Mounting Type: Through Hole
Package / Case: TO-247-3
Supplier Device Package: PG-TO247-3
